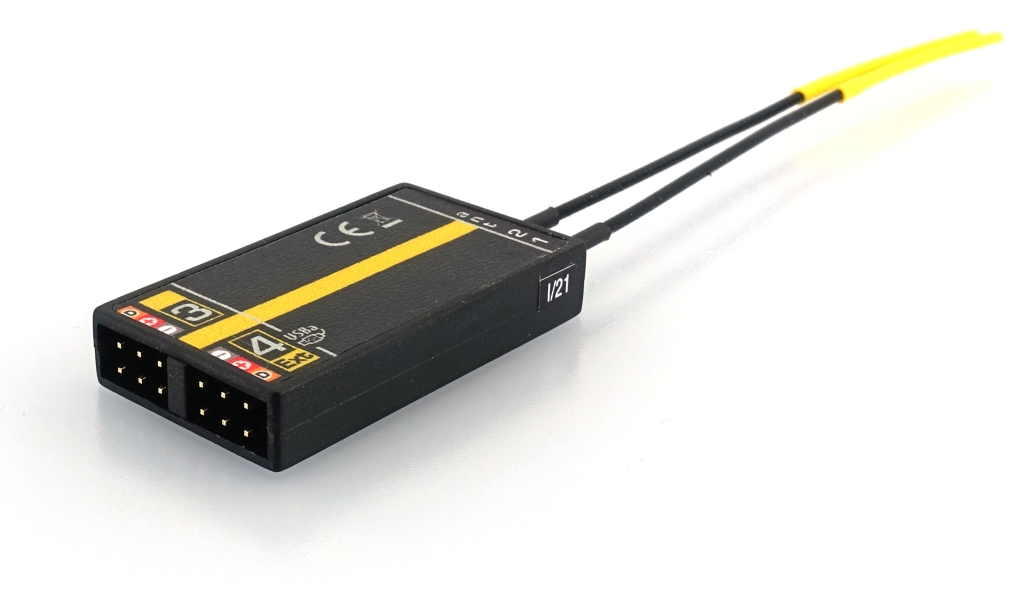

Duplex R4RES

Art. No.:
JDEX-R4RES
EAN:
Duplex R4RES
Weight [g] 8
Dimensions [mm] 40x22x7
Number of channels 4
Operational temperature [°C] -10 ... 60
Compatible protocols DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm] 2x100
Supply Voltage [V] 3,5 - 8,4
Average Current [mA] 75
Satellite receiver support No
Output Power [dBm] 15
Receiver Sensitivity [dBm] -106
Assist stabilization No

Files for download

Manuals - Duplex EX

JETI Duplex Rx CZ - Czech user manual for Rx receivers (CZ)
JETI Duplex Rx DE - German user manual for Rx receivers (DE)
JETI Duplex Rx EN - English user manual for Rx receivers (EN)

Devices (file)

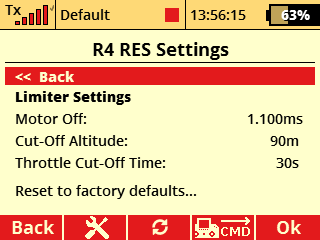

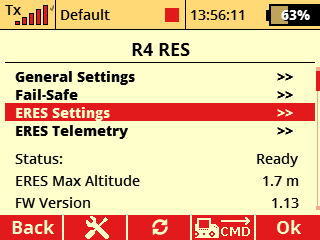

R4 RES receiver has a special type of firmware designed for the competition category of electrically powered gliders (ERES). Measurements and height calculations are the same as the specifications of F5J category. Settings and telemetry are strictly limited according to the needs of the ERES competition.





img img
img img





To display the R4 RES receiver in "device explorer", it is necessary to have the configuration file R4RES.bin in the Devices folder in the transmitter.
