DC-16
JDEX-TDC16-NR-M2
JDEX-TDC16-NR-M5
8595245908966
8595245911027
| Weight [g] | 1500 |
| Dimensions [mm] | 230x270x40 |
| Output Power - 2.4GHz [mW] | 100 |
| Number of channels | 16 |
| Number of controls | 20 |
| Resolution | 4096 steps |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 60 |
| Operating time [h] | 11 |
| Compatible protocols | DUPLEX 2.4GHz EX, EX Bus |
| Output Power - 900MHz [mW] |
Files for download
Manuals - DC/DS Transmitters

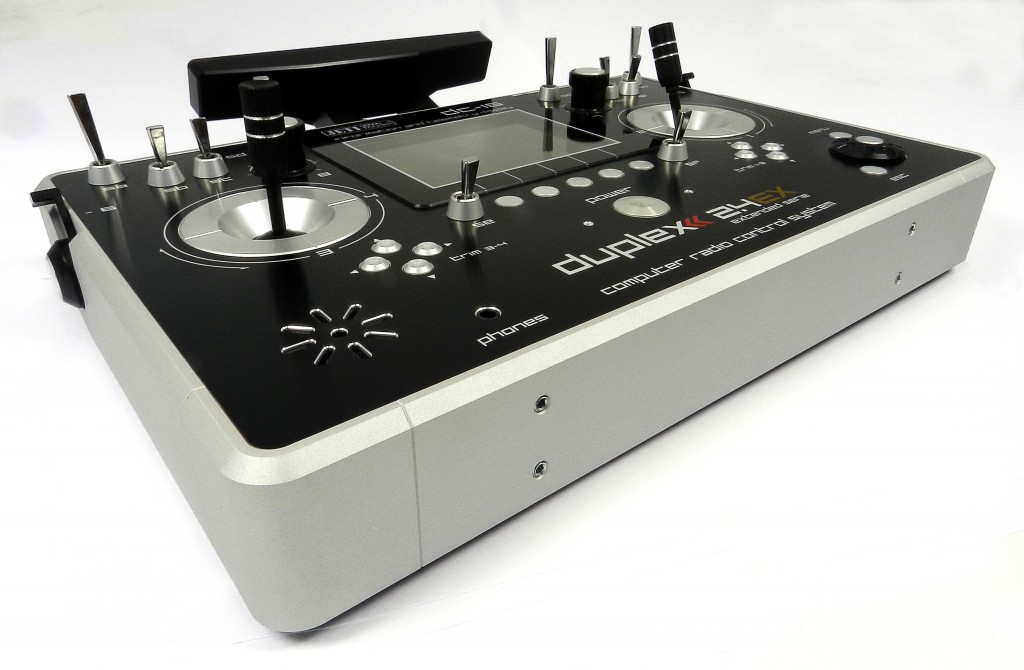

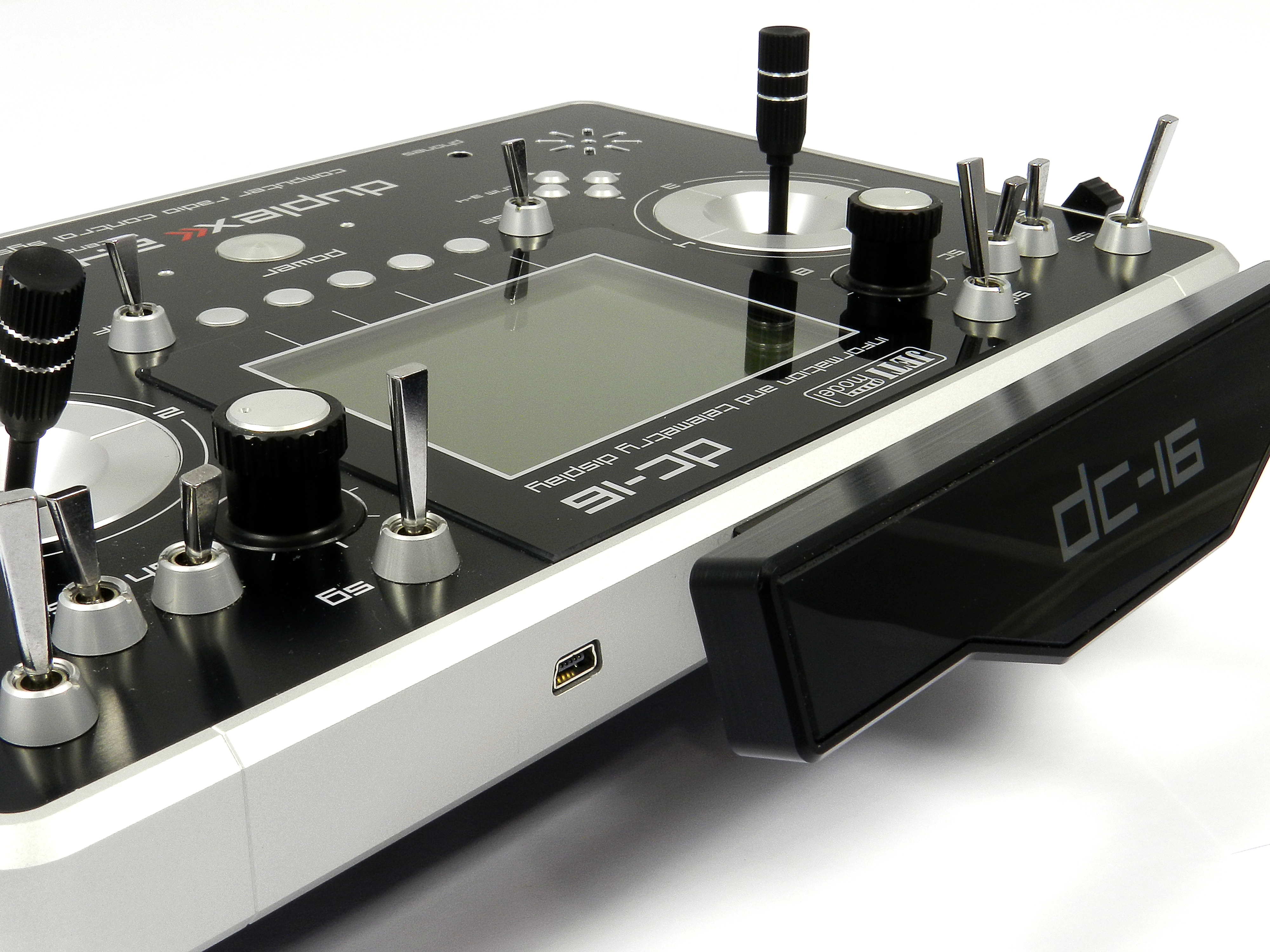

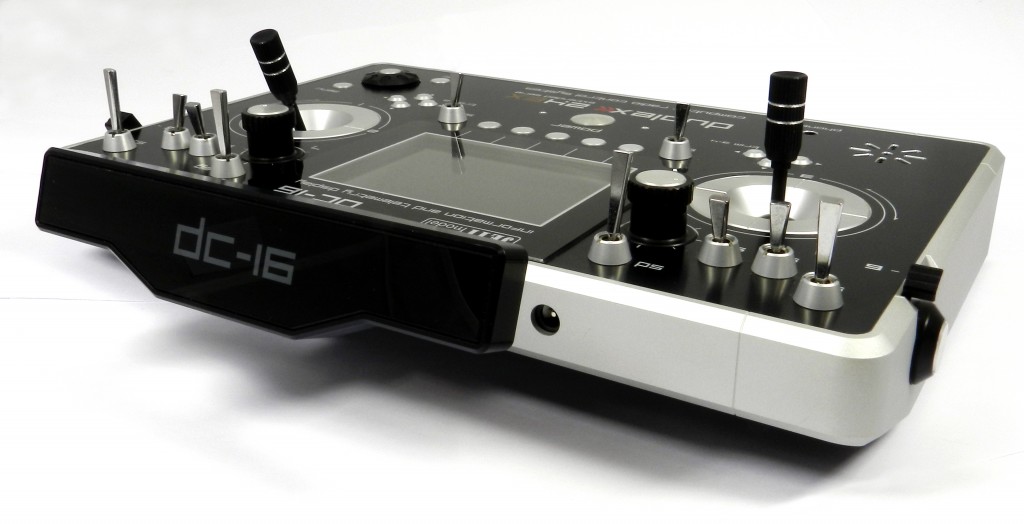

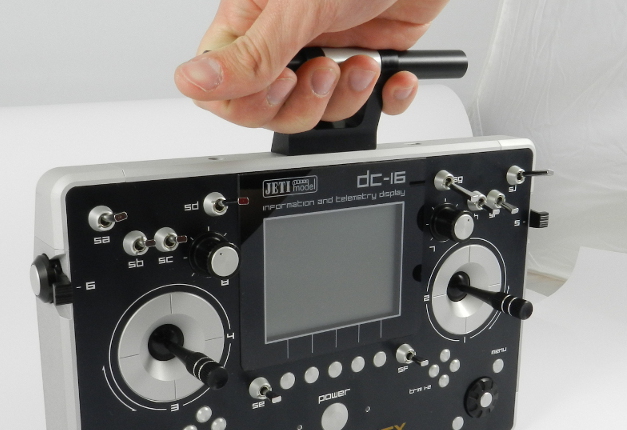

Tray variant of the top-class RC transmitter of JETI model. The transmitters DC-16 and DS-16 came to existence under cooperation of professional pilots and world champions. They have been developed with the aim of maximum utility, simple handling as well as maximum durability and reliability of mechanical parts. The metal case provides maximum protection of the interior as well as of the outside surfaces against chemicals and the straightforward shapes make servicing easy. Metal quad ball raced stick units with magnetic Hall sensors confirm the revolutionary design concept of this mostly strained element of a RC-System.
Available variants:
| Art. No.: | |
| JDEX-TDC16-NR-M1 | Transmitter mode 1/3 |
| JDEX-TDC16-NR-M2 | Transmitter mode 2/4 |
| JDEX-TDC16-NR-M5 | Special mode with both spring loaded stick mechanisms |
Duplex 2,4GHz – for flight control and reception of telemetric data from the model to the transmitter the DC-16 takes advantage of the wireless system Duplex 2,4GHz, which has been developed by the JETI company as well. The data transfer system Duplex 2,4GHz is very reliable and has been verified during many years.
Built-in Telemetry – from the beginning the DC-16 transmitter has been developed with regard to lucid displaying properties and exploitation of telemetry for model RC-control.
Design of the DC-16 Transmitter – the main goal was maximum user comfort, exclusive appearance and longevity by exploitation of premium quality materials.
Precise Quad Sticks – made of metal ball raced parts warrant together with contactless scanning an enormous longevity.

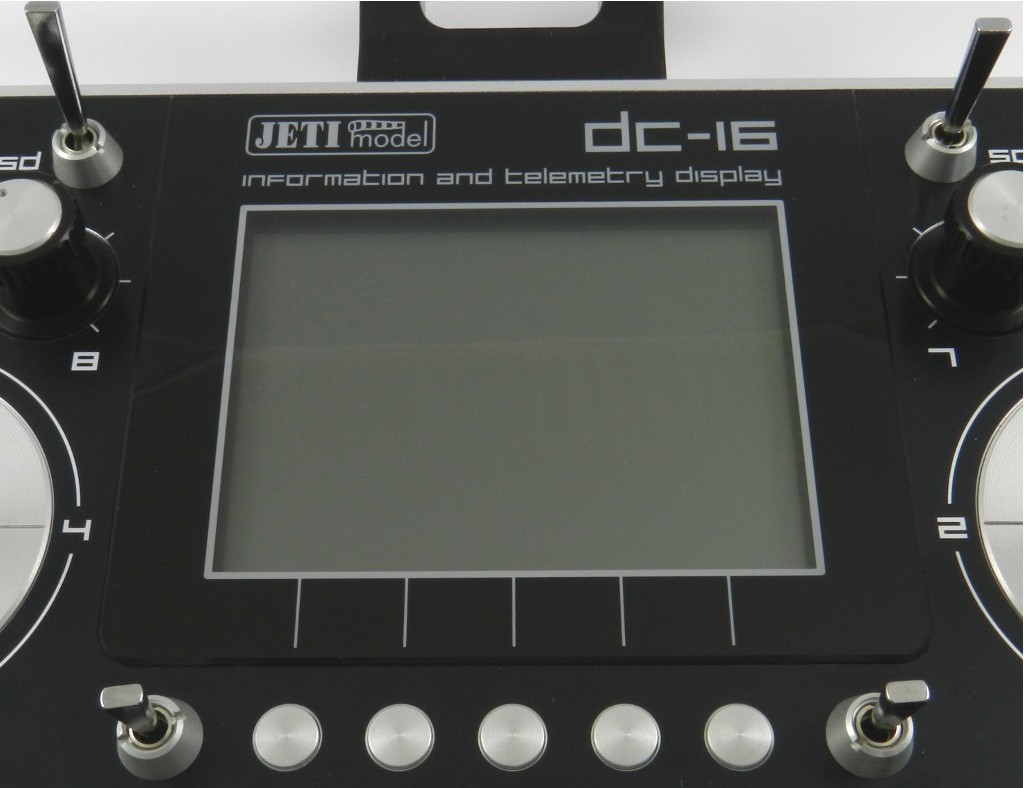

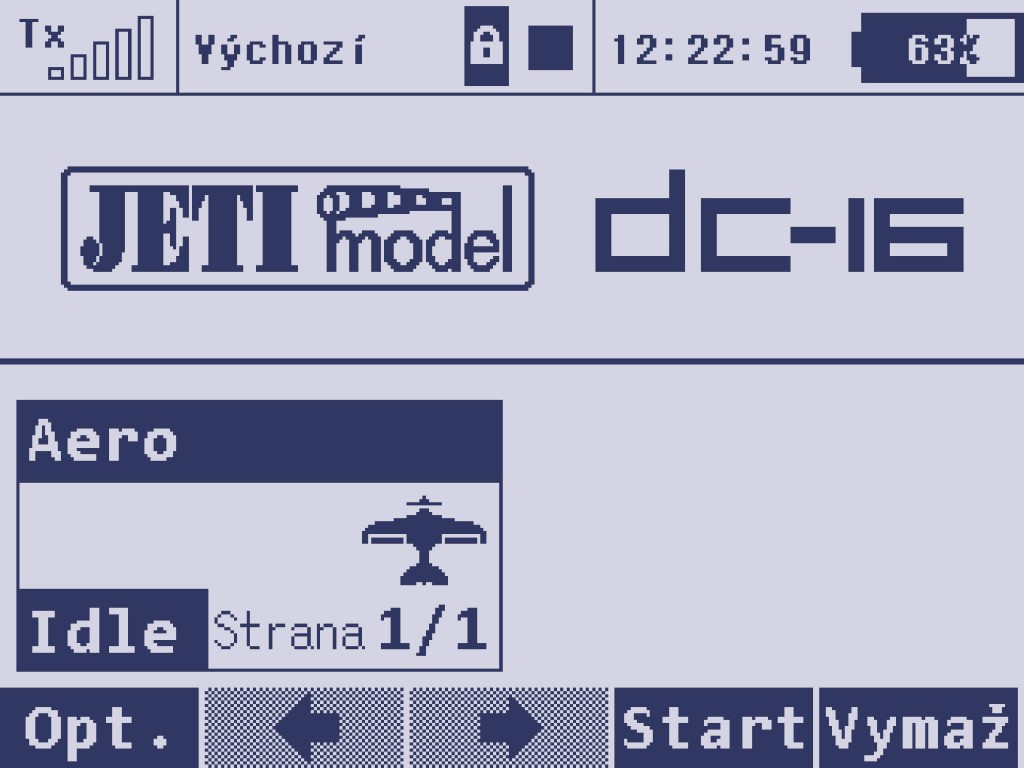

LCD Display – the 3,8“ backlit display of the DC-16 transmitter with a resolution of 320x240 pixels allows perfect legibility under all lighting conditions.
Li-Ion Battery – a reliable energy source with high capacity and long service life.
Easy Charging – simply done by connecting the mains adapter to the transmitter. The charging proces is shown in the DC-16 display.
Integrated Antenna – the antenna forms an integral part of the transmitter and is protected against mechanical damage.
