We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).
You can find more information and photos on our Facebook profile JETI Model.
1. REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).
2. MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.
-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)
The update can be done by the Jeti Studio.
DC-14
| Weight [g] | 1500 |
| Dimensions [mm] | 230 x 270 x 40 |
| Output Power - 2.4GHz [mW] | 100 |
| Number of channels | 14 |
| Number of controls | 20 |
| Resolution | 4096 steps |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 60 |
| Operating time [h] | 11 |
| Compatible protocols | DUPLEX 2.4GHz EX, EX Bus |
| Output Power - 900MHz [mW] |
Files for download
Manuals - DC/DS Transmitters

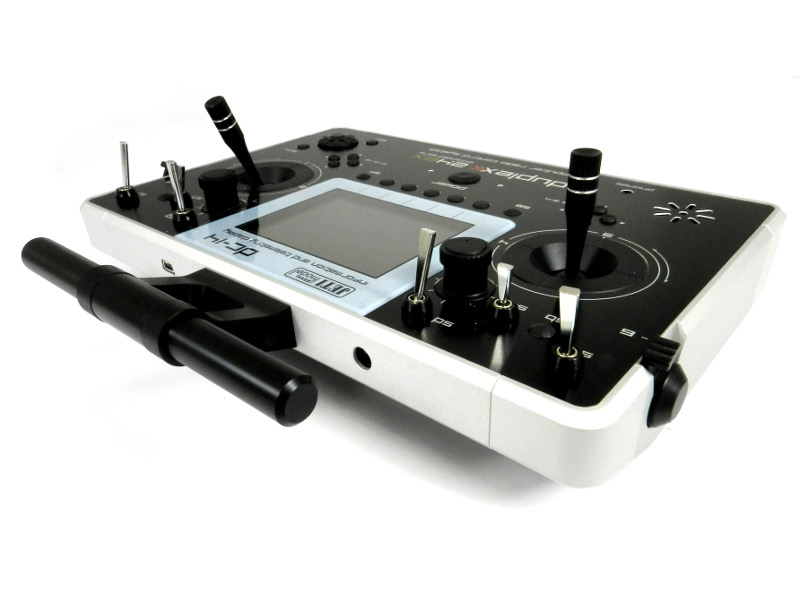

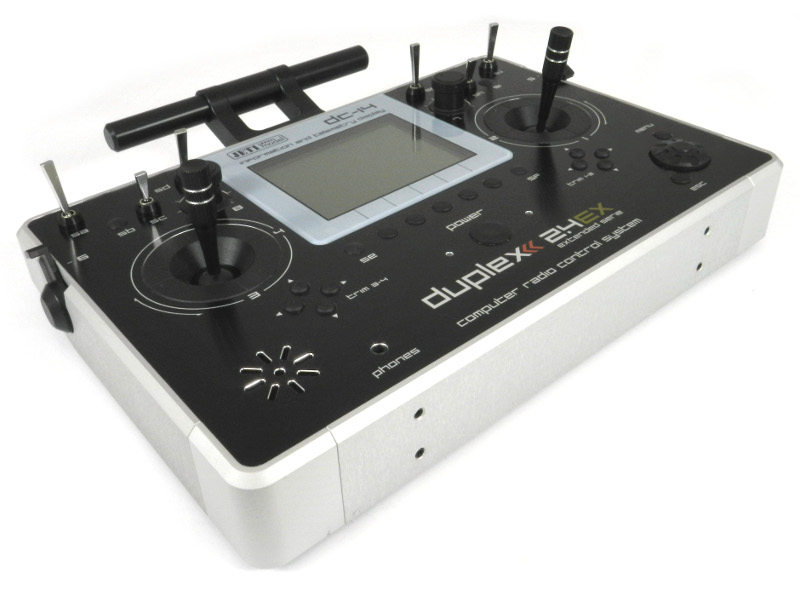

The DC-14 tray-type transmitter expands the range of RC transmitters equipped with the JETI Duplex system. This new design is based on the high-end model DC-16. Unlike the DC-16, the DC-14 offers a unique concept of individual feature setup based upon the requirements of each customer. The transmitter is available in a basic configuration that will meet the needs of most users for most model types.
Available variants:
| Art. No.: | |
| JDEX-TDC14-M1 | Transmitter mode 1/3 |
| JDEX-TDC14-M2 | Transmitter mode 2/4 |
| JDEX-TDC14-M5 | Special mode with both spring loaded stick mechanisms |
The DC-14 features newly designed gimbal sticks. We managed to keep all the characteristics of the full metal sticks used in the DC-16, mainly thanks to high-quality materials and Hall sensors inside the sticks which are fully supported by high quality ball bearings.
Additional software extensions
For individual setting of the transmitter there is a configurator available at swshop.jetimodel.com. After the simple registration of your transmitter it is possible to select additional features based upon your individual demands. For example, if you fly only helicopter models, select such features as "Throttle Limiter" or "Gyro Settings" but you will probably not need to increase the number of flight modes. These are more suitable for controlling glider models.
Available extensions:
Duplex 2,4GHz – for flight control and reception of telemetric data from the model to the transmitter the DC-14 takes advantage of the wireless system Duplex 2,4GHz, which has been developed by the JETI company as well. The data transfer system Duplex 2,4GHz is very reliable and has been verified during many years.
Built-in Telemetry – from the beginning the DC-14 transmitter has been developed with regard to lucid displaying properties and exploitation of telemetry for model RC-control.
Design of the DC-14 Transmitter – the main goal was maximum user comfort, exclusive appearance and longevity by exploitation of premium quality materials.
Precise Quad Sticks – made of metal ball raced parts warrant together with contactless scanning an enormous longevity.

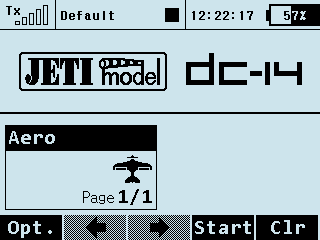

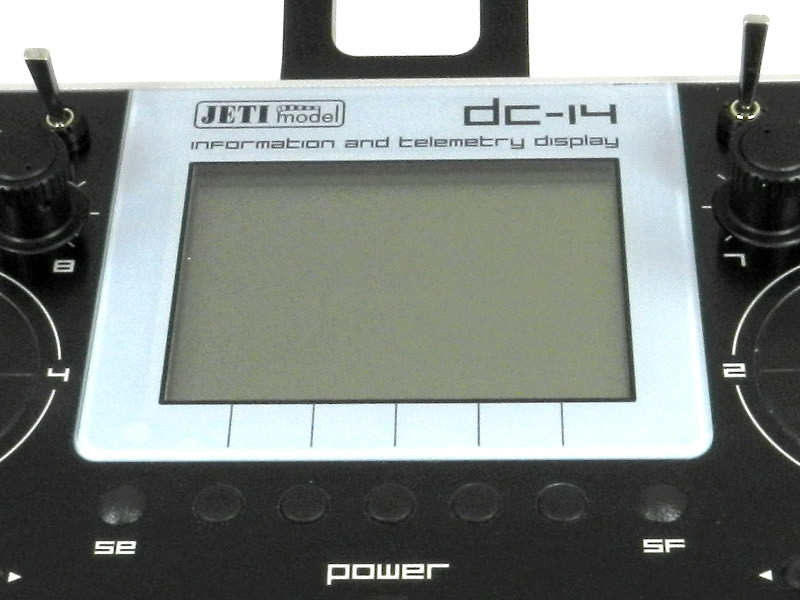

LCD Display – the 3,8“ backlit display of the DC-14 transmitter with a resolution of 320x240 pixels allows perfect legibility under all lighting conditions.

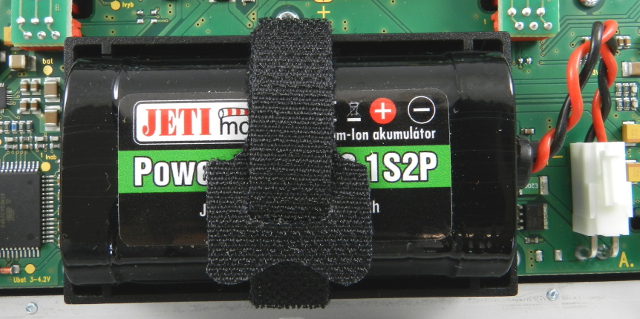

Li-Ion Battery – a reliable energy source with high capacity and long service life.
Easy Charging – simply done by connecting the mains adapter to the transmitter. The charging proces is shown in the DC-14 display.
Integrated Antenna – the antenna forms an integral part of the transmitter and is protected against mechanical damage.
