DS-14 II

Art. No.:
EAN:
DS-14 II
Weight [g] 1200
Dimensions [mm] 194x233x40
Output Power - 2.4GHz [mW] 100
Number of channels 14
Number of controls 12
Resolution 4096 steps
Telemetry Yes
Operational temperature [°C] -10 ... 60
Operating time [h] 12
Compatible protocols DUPLEX 2.4GHz EX, EX Bus

Files for download

Manuals - DC-DS-14 II

DC-DS-14 II CZ Main Menu - Czech user manual (menu and software)
DC-DS-14 II DE Main Menu - German user manual (menu and software)
DC-DS-14 II EN Main Menu - English user manual (menu and software)
DC-DS-14 II CZ - Czech user manual (mechanics)
DC-DS-14 II DE - German user manual (mechanics)
DC-DS-14 II EN - English user manual (mechanics)

The DS-14 II transmitter uses the proven Jeti Model 2.4GHz Duplex system for wireless control of RC models. The transmitter has precise sticks with hall sensors, a graphic LCD color display with backlight and a clear and intuitive way of programming. The DS-14 II transmitter offers a modular system of software features according to the requirements of each user. The transmitter is delivered with a basic configuration (see table below), this configuration is a good start for most new users.

You will find our online shop,  swshop.jetimodel.com, where you can open an account, registrar your radio and order additional features as required.

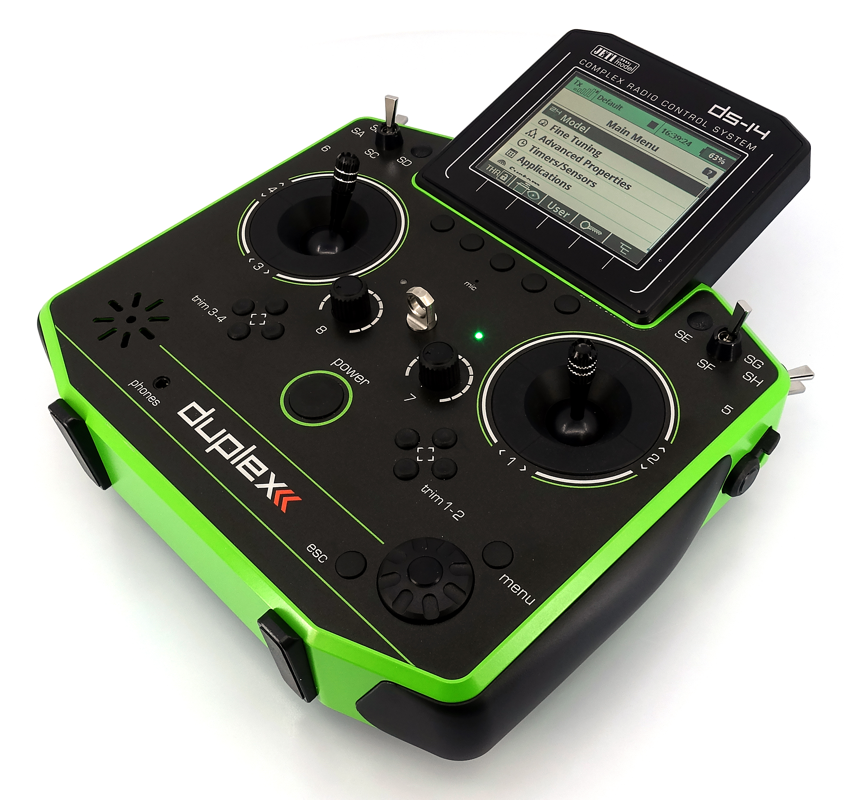

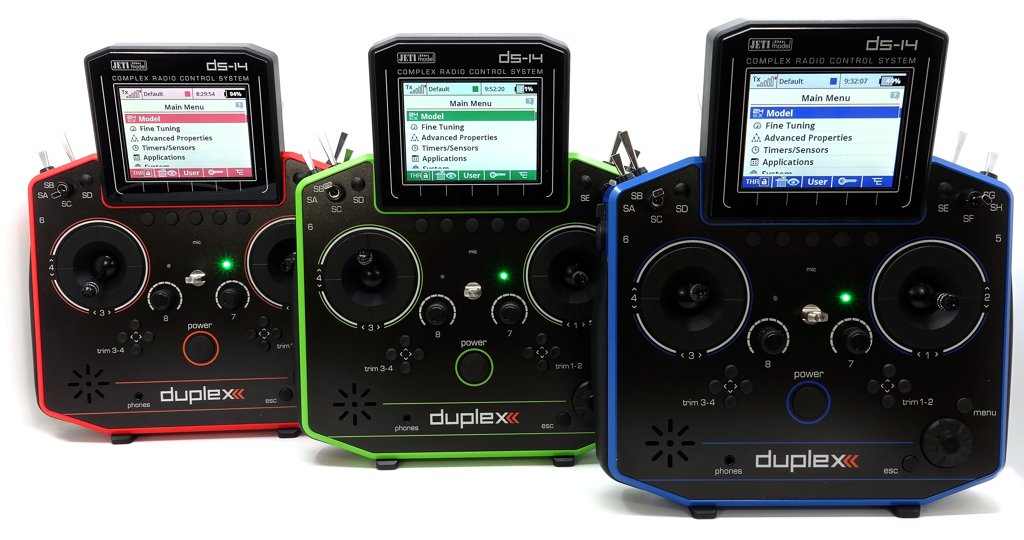

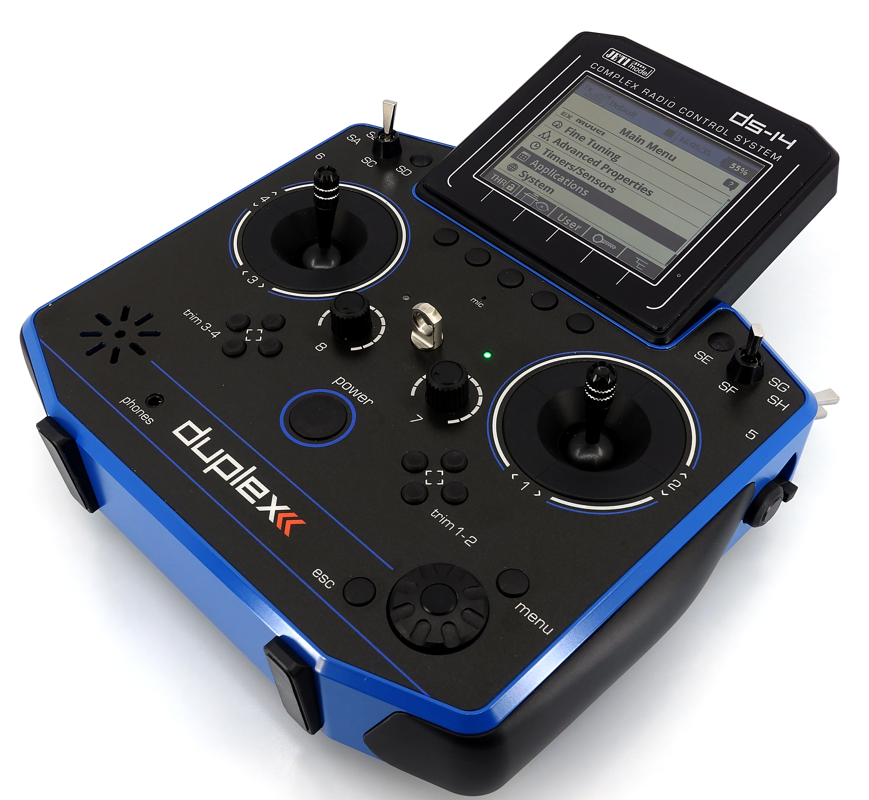

Color variants of DS-14 II transmitters: blue, green, red







img img

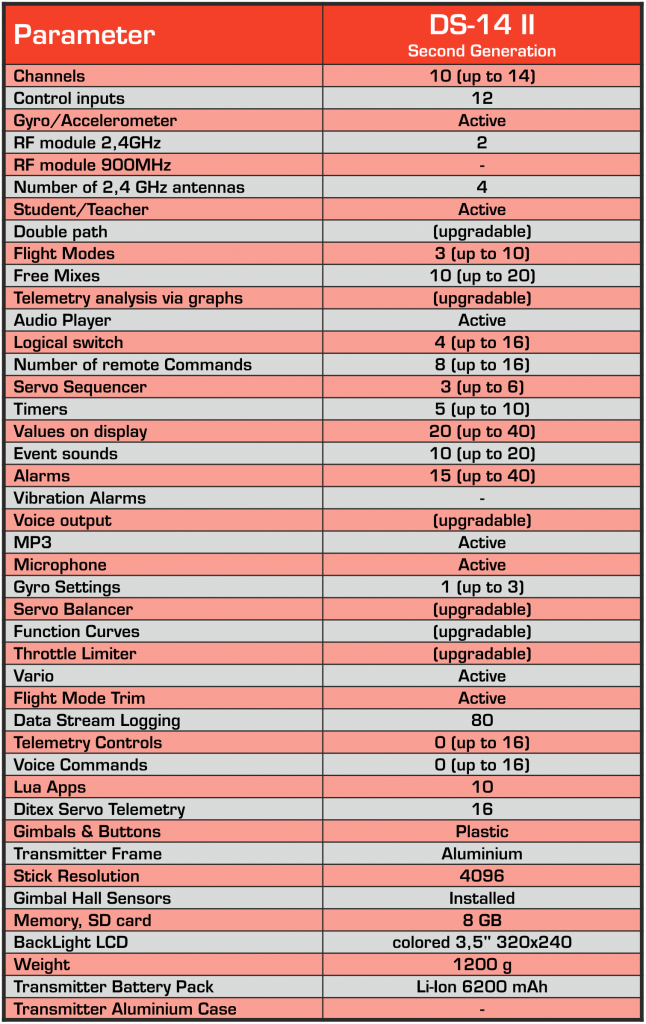

ds14II-tab

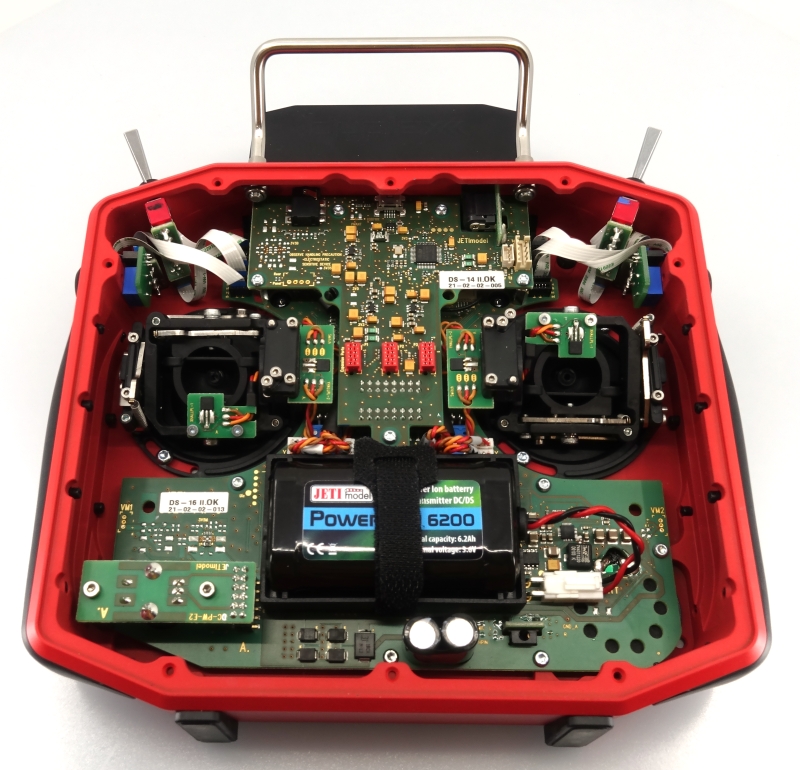

DS-14 II Inside

A color TFT LCD display placed on the top side of the transmitter offers perfect legibility at any lighting condition and a large surveillance angle. Thanks to the high display resolution and application of a relatively big ammount of graphic images it was possible to create a simple and intuitive setting procedure, especially for displaying telemetric data.

The DUPLEX EX product family has been equipped with an improved telemetric data transfer system and the subsequent data processing on the LCD transmitter display or analysis on a PC. The transmitter allows  setup of acoustical notifications (optionally created by the user himself), which are related to the actual telemetric values or to sound signals assigned to conditions of particular control elements.












Duplex 2.4GHz – for flight control and reception of telemetric data from the model to the transmitter the DS-14 II takes advantage of the Duplex 2.4GHz wireless system, which has been developed by the JETI company as well. TheDuplex 2.4GHz data transfer system is very reliable and has been verified during many years.













Built-in Telemetry – from the beginning the DS-14 II transmitter has been developed with regard to lucid displaying properties and exploitation of telemetry for model RC-control.










Integrated microphone with optional voice recognition capability – using the integrated microphone you can easily prepare your own audio files. Furthermore, you can teach the transmitter to respond to several voice commands.










Audio Player – the audio player application supports MP3 and WAV sound formats.








Model & Background Image – the DS-14 II allows great personalization of the whole user interface.

Color Schemes – it is possible to choose a color scheme that corresponds to model colors. The DS-14 II offers several predefined color schemes.













User Applications – the DS-14 II can be easily extended using third-party applications written in Lua programming language (www.lua.org).

See the programming documentation.

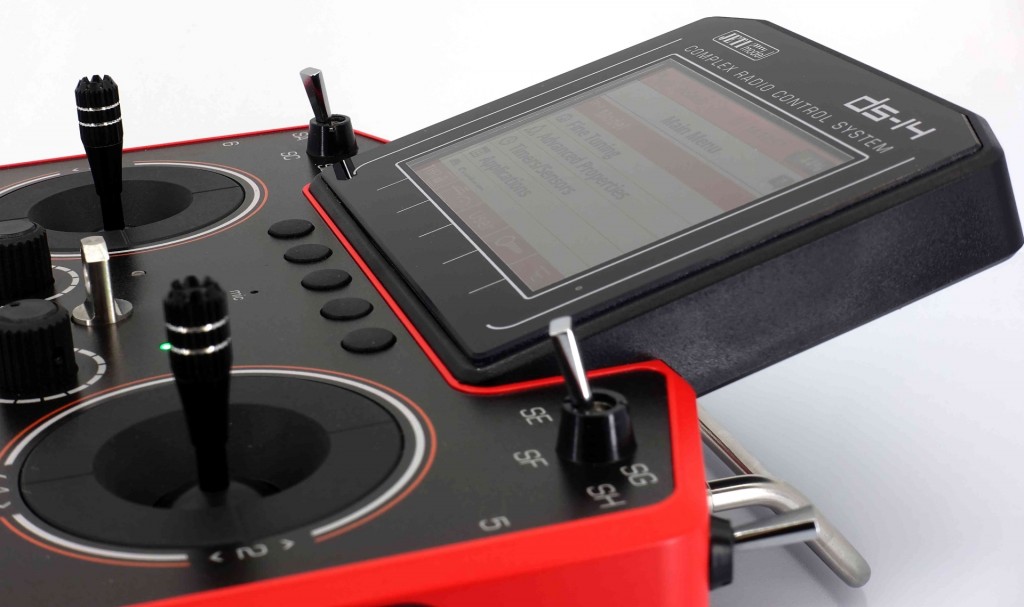

DS-14 II:Design

Design of the DS-14 II Transmitter – the main goal was maximum user comfort, exclusive appearance and longevity by exploitation of premium quality materials.









 DC-14 II Gimbals

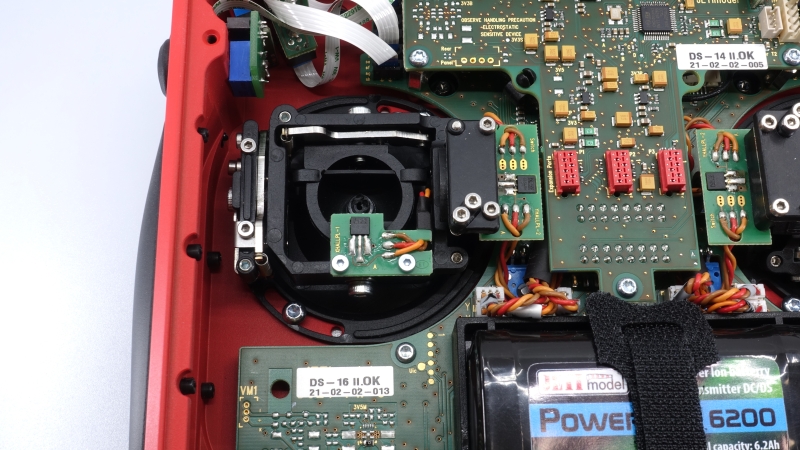

Precise Gimbals – made of plastic parts, mounted in ball bearings, which guarantees long life together with contactless scanning.









DS-14 II Display

LCD Display – the 3.5“ TFT LCD display of the DS-14 II transmitter with a resolution of 320x240 pixels allows perfect legibility under all lighting conditions.








Li-Ion Battery – a reliable energy source with high capacity and long service life.





DS-14 II

Easy Charging – simply done by connecting the mains adapter to the transmitter. The charging proces is shown in the DS-14 II display.

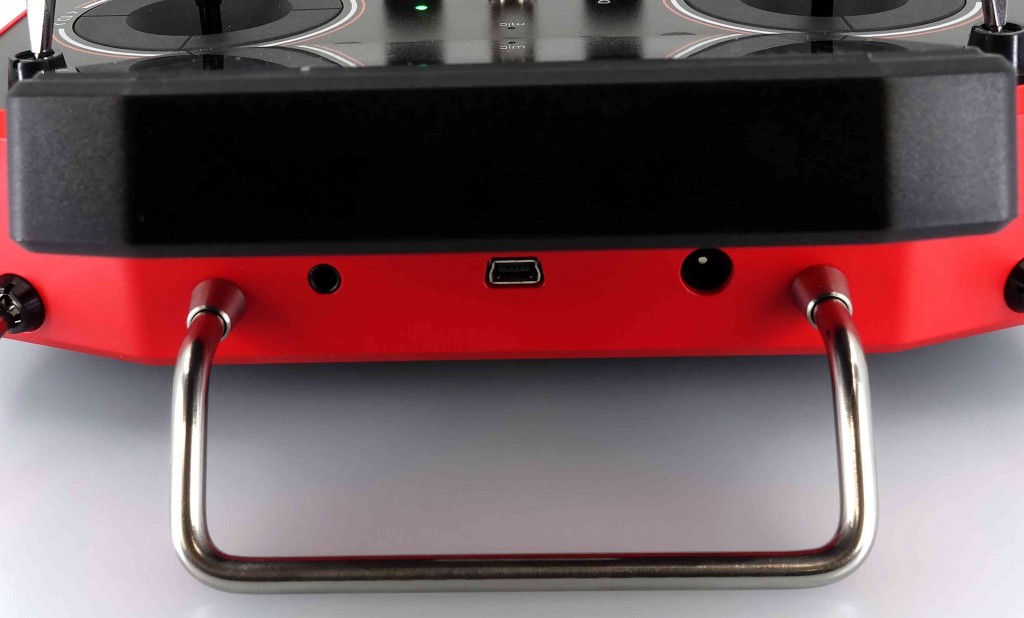

USB Connector – convenient connection to your PC. Fast firmware &
sound upgrades, telemetry data downloads.

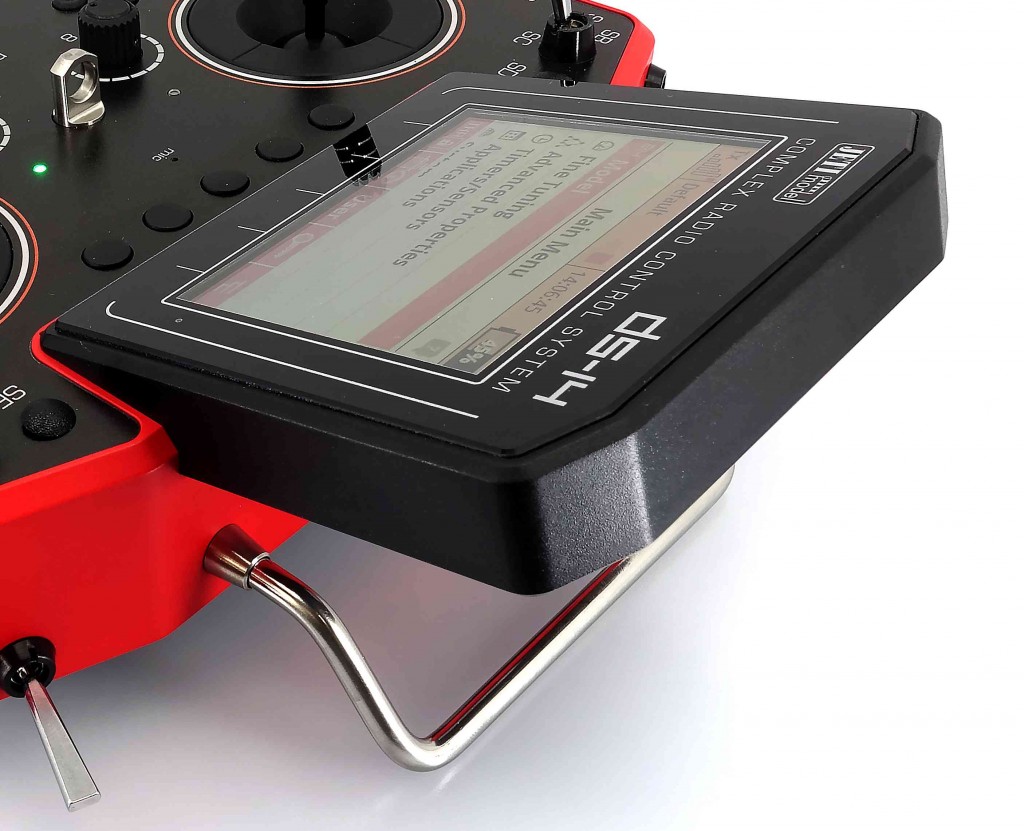

DS-14 II:Antenna

Integrated Antennas - antennas are an integral part of the transmitter and are protected against mechanical damage.
