We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).
You can find more information and photos on our Facebook profile JETI Model.
1. REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).
2. MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.
-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)
The update can be done by the Jeti Studio.
DC-24 Limited Edition 75th WWII
| Weight [g] | 1500 |
| Dimensions [mm] | 230x270x40 |
| Output Power - 2.4GHz [mW] | 100 |
| Number of channels | 24 |
| Number of controls | 20 |
| Resolution | 4096 steps |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 60 |
| Operating time [h] | up to 12 |
| Compatible protocols | DUPLEX 2.4GHz EX, 900MHz, EX Bus |
| Output Power - 900MHz [mW] | 25 |
Files for download
Manuals - DC/DS-24 Transmitters

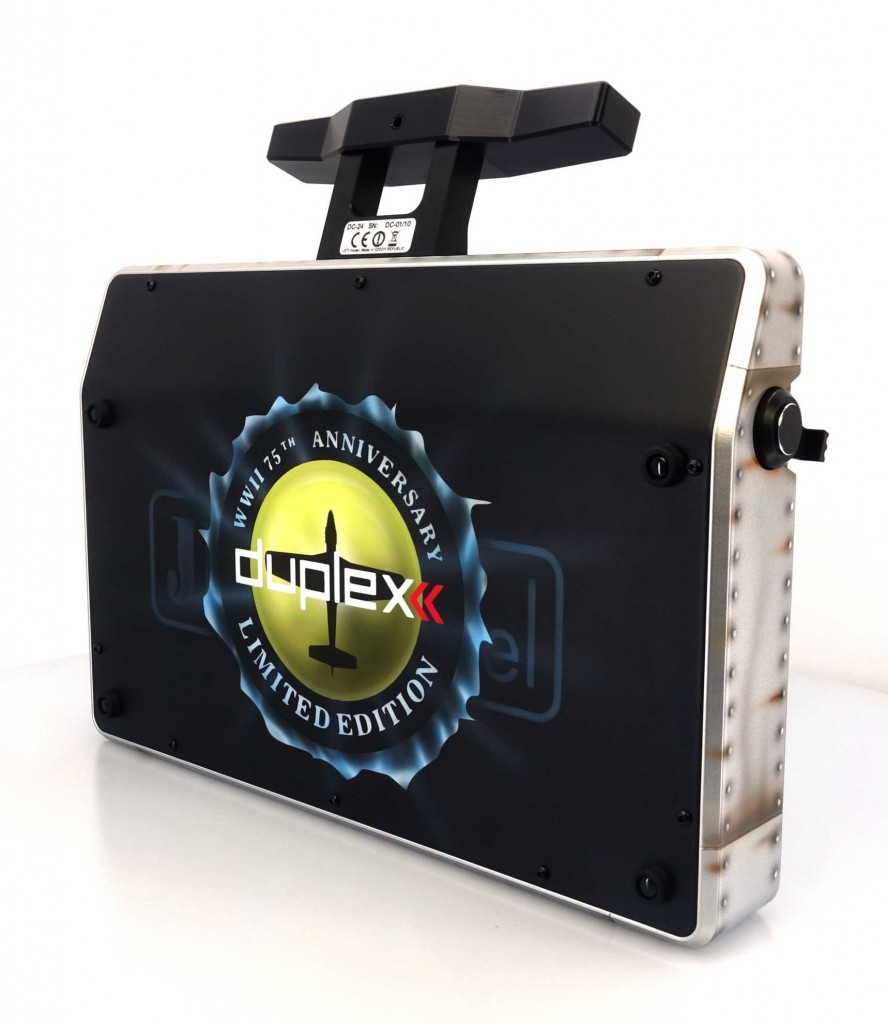

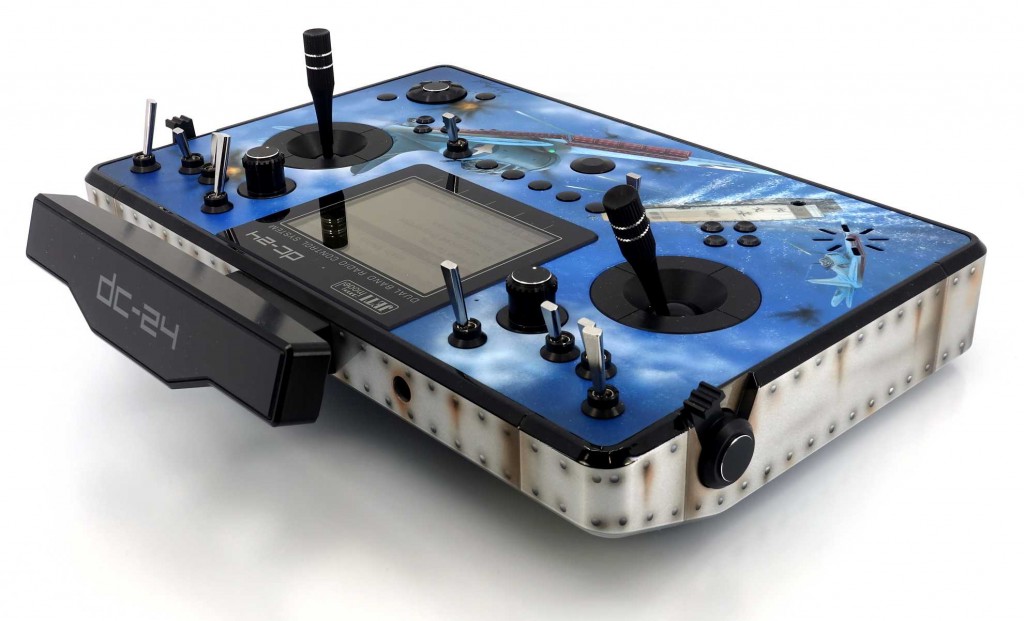

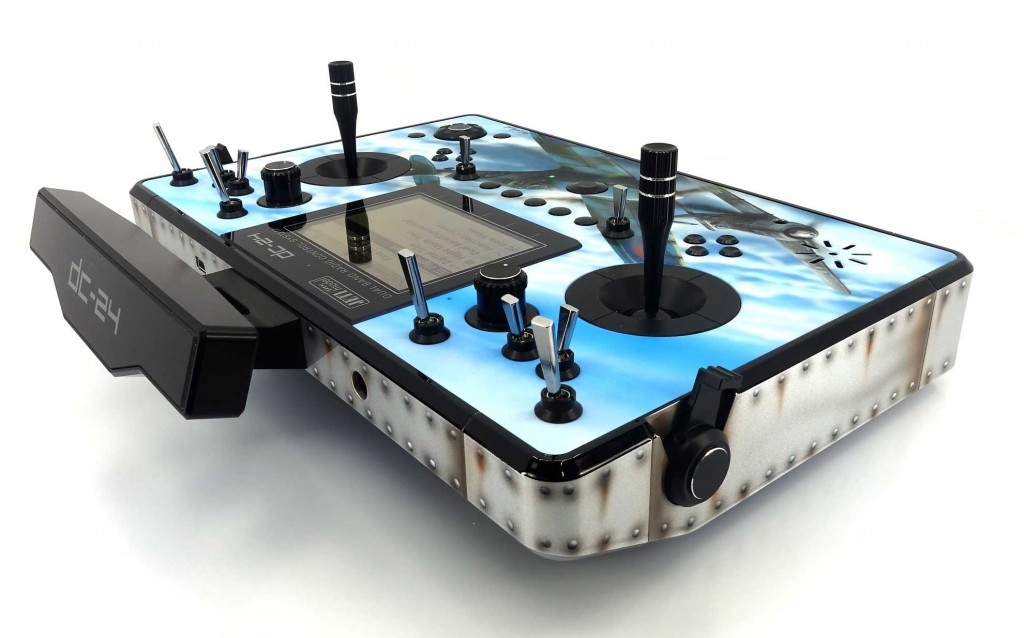

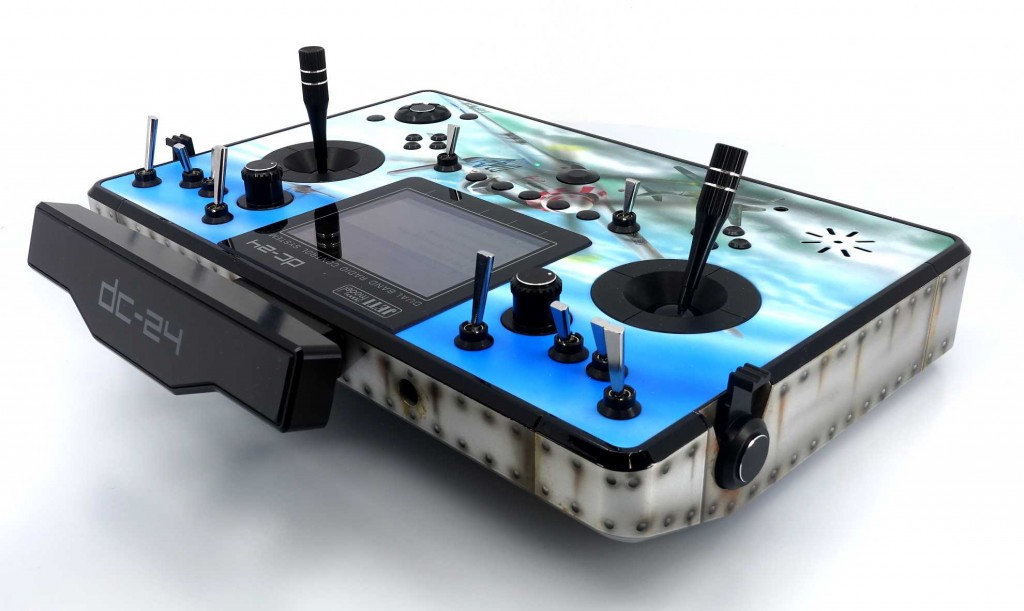

Special limited edition of DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. The limited edition is intended for our customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).
If you are interested in one of the transmitters of this limited edition, please send an email with your request to our email: JETI@jetimodel.cz
Available transmitters:

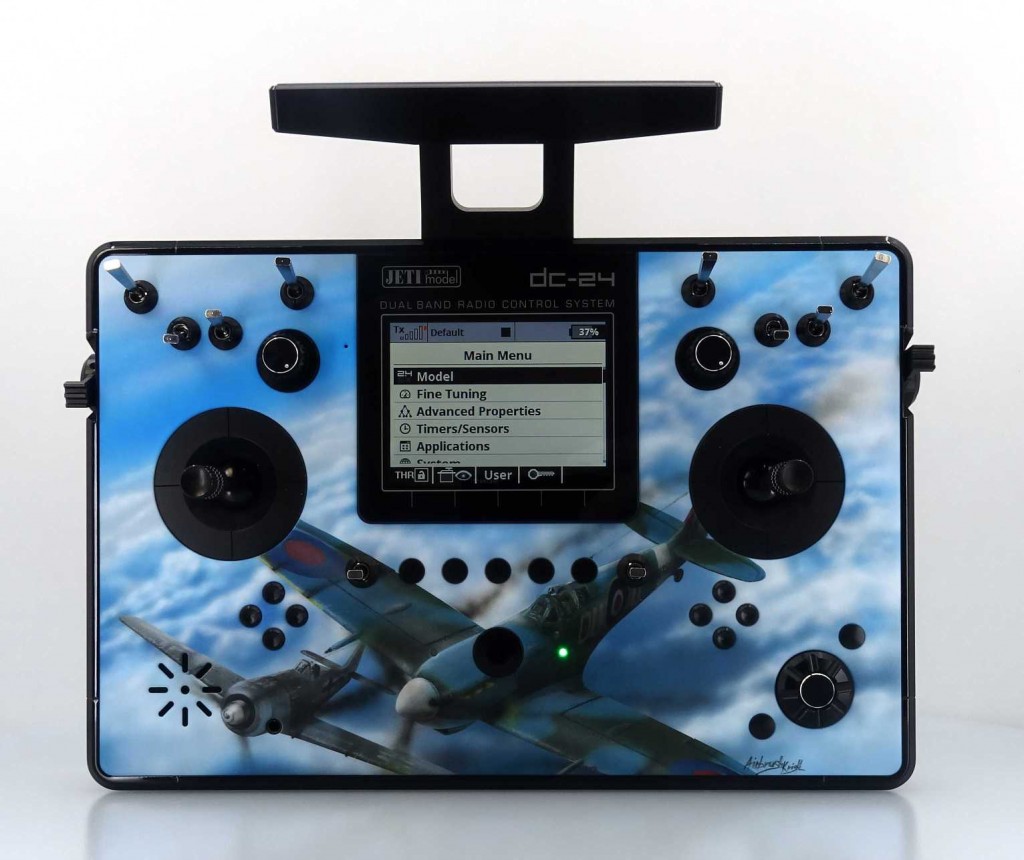

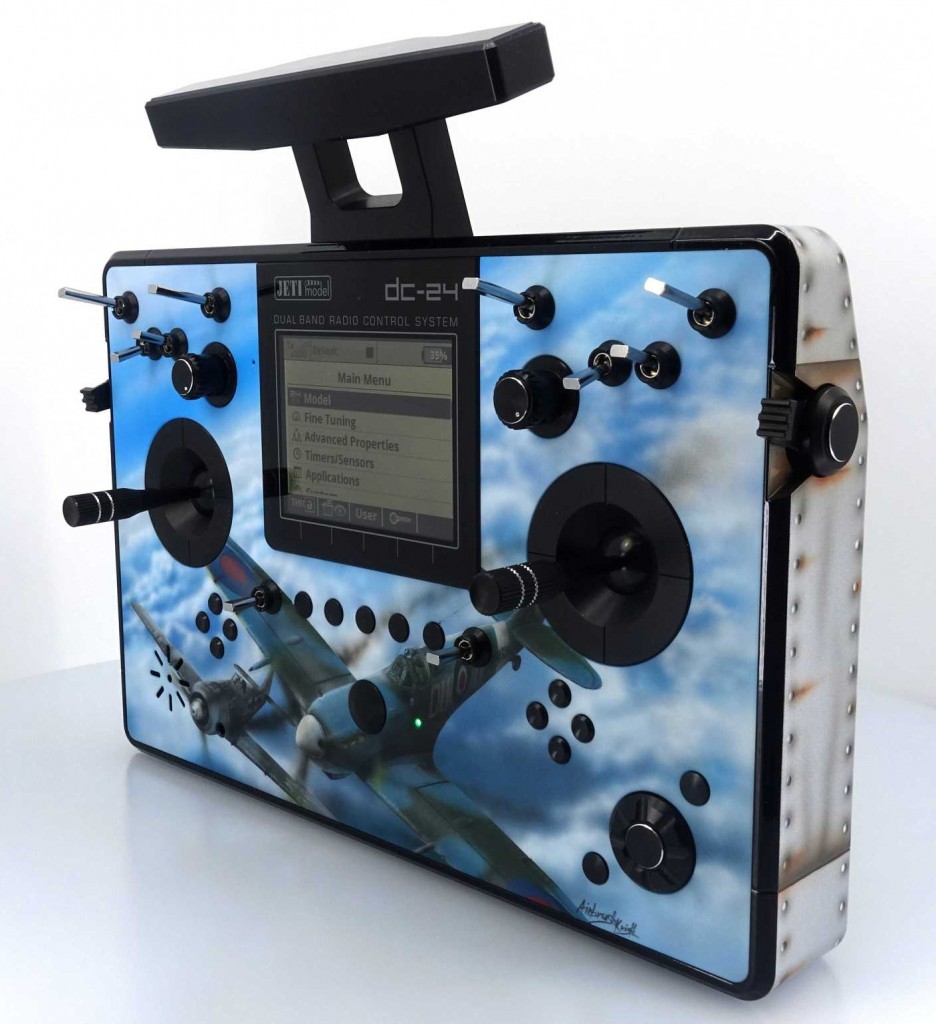

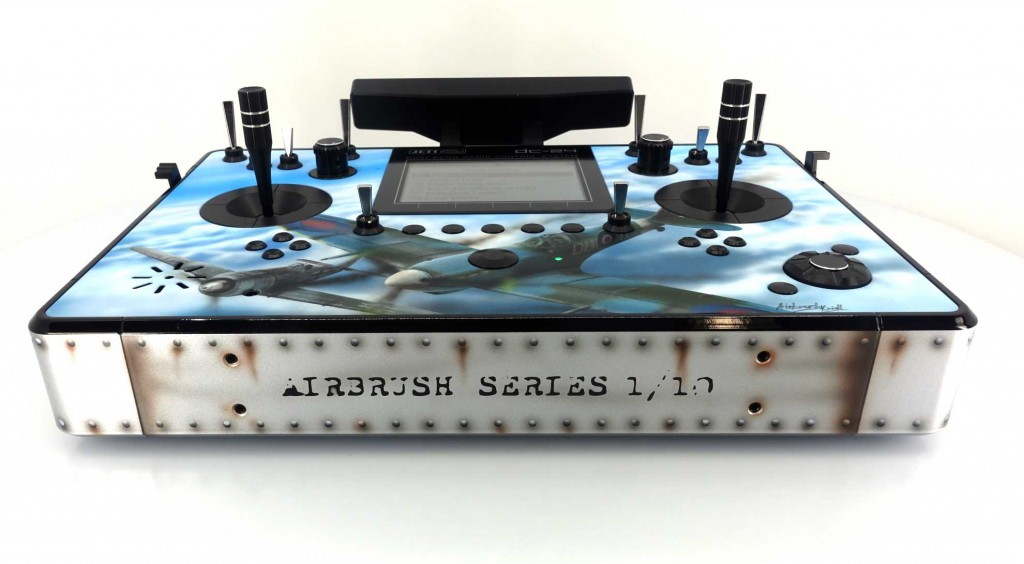

sn 1/10: Limited edition DC-24 Spitfire Mk5c
Lieutenant General František Peřina, 3.6.1942 Channel La Manche
 |
|

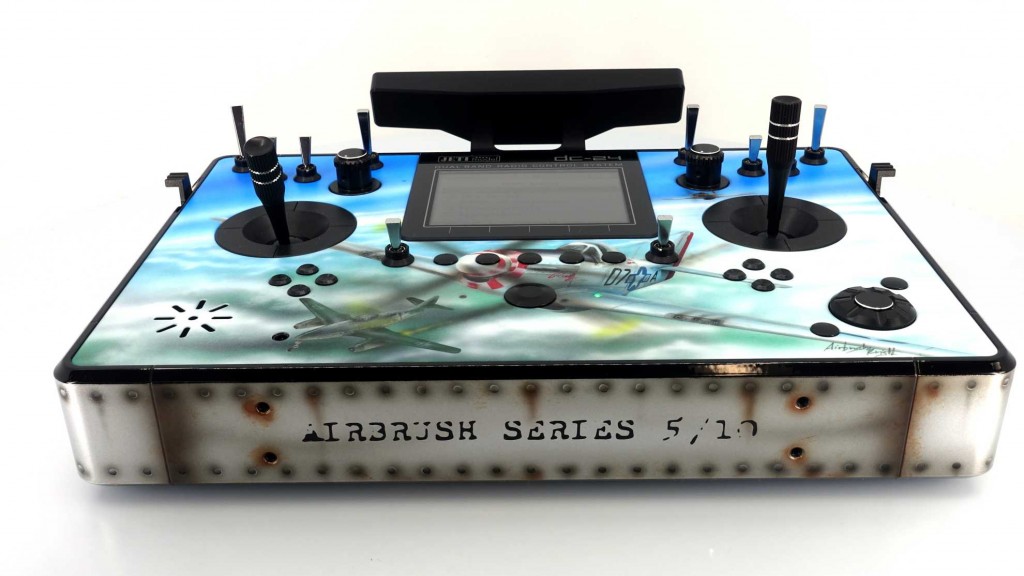

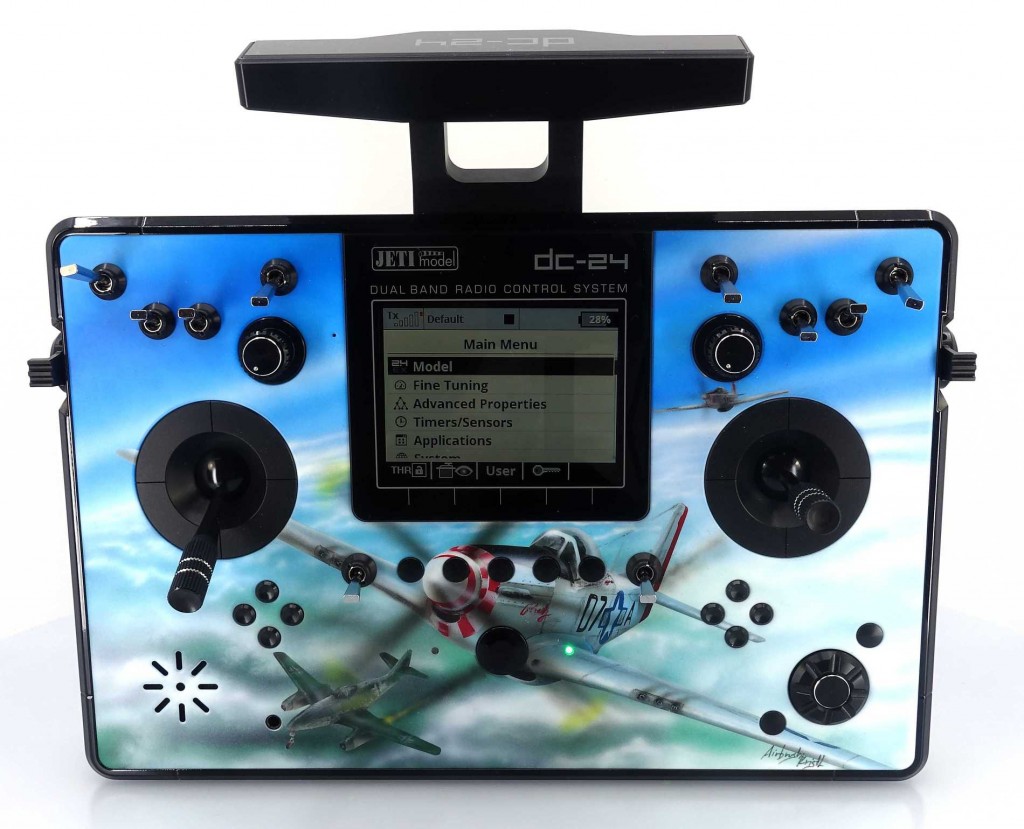

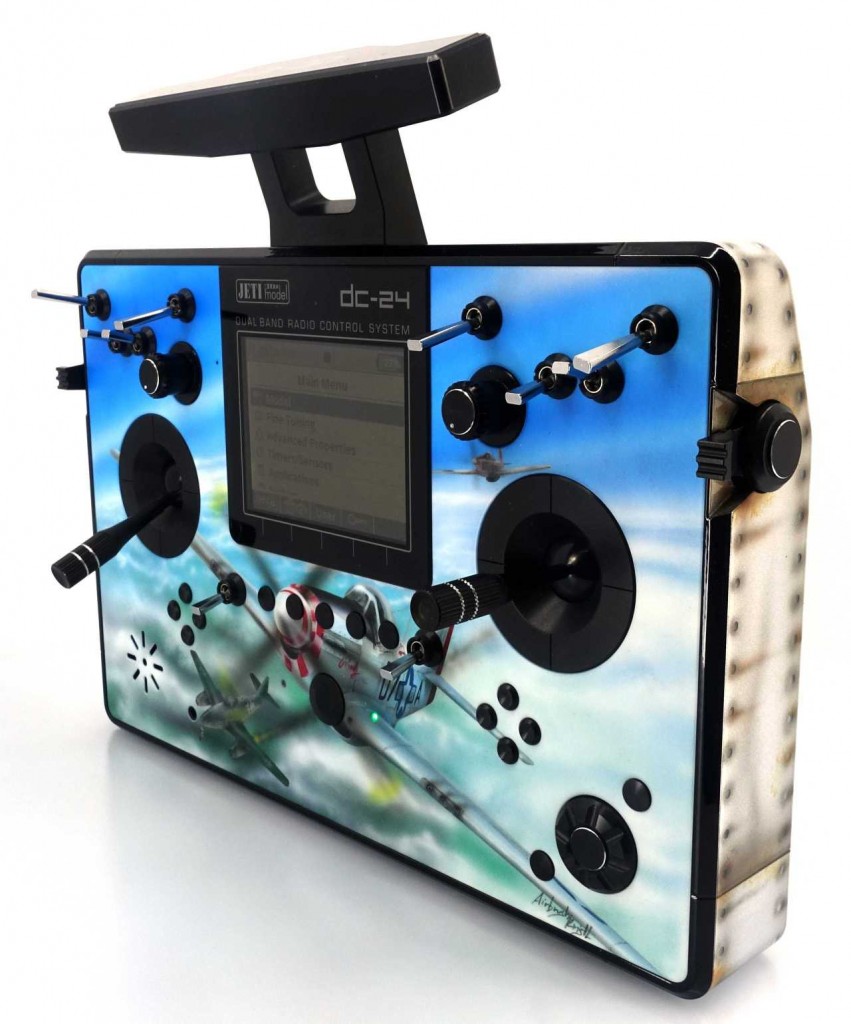

sn 5/10: Limited edition DC-24 Mustang P51d
First Lieutenant William R. Preddy, 17.4.1945 Ceske Budejovice (city of the Czech Republic)
 |
 |

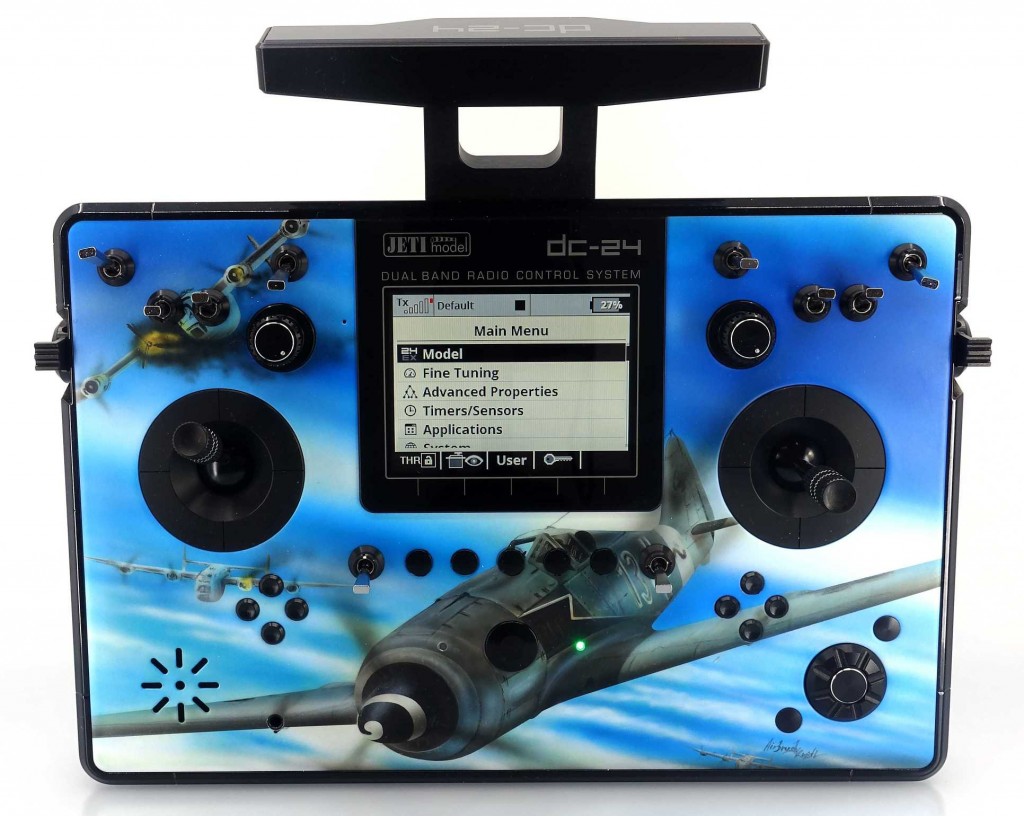

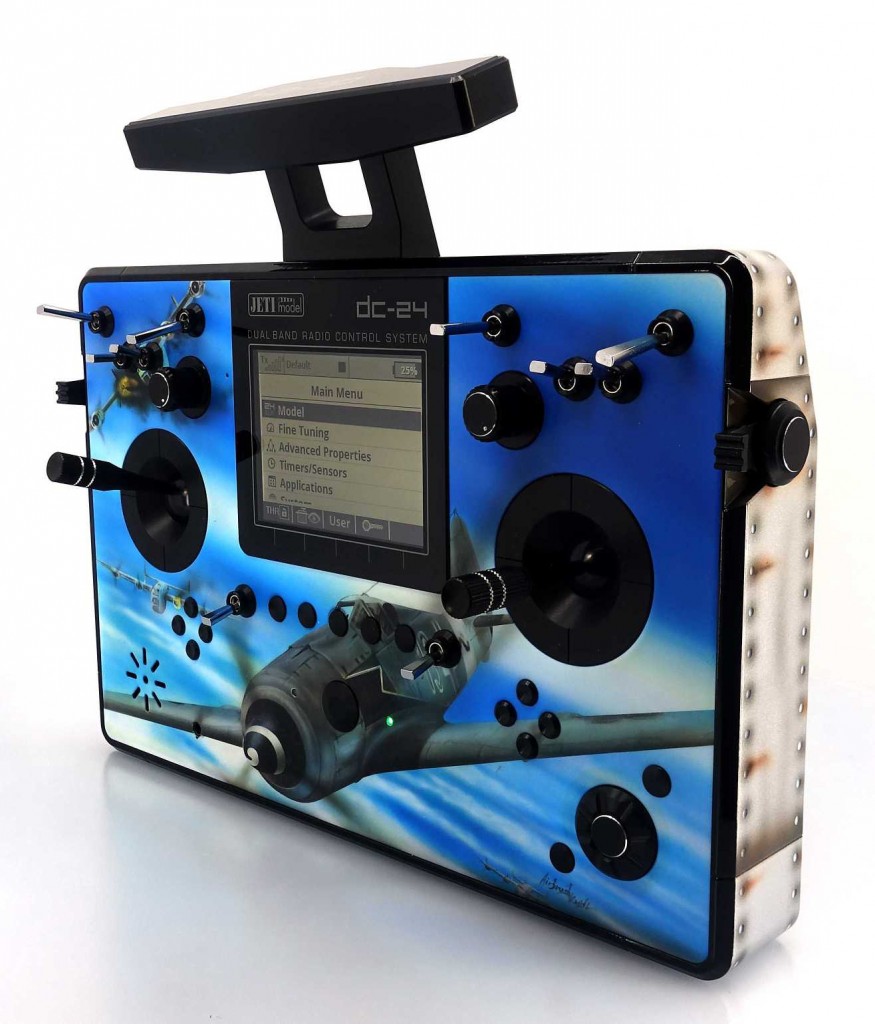

sn 7/10: Limited edition DC-24 Focke Wulf 190 A8/R8
Oberst Walther Dahl, 17.12.1944 Upper Silesia (Oberschlesien)
 |
 |

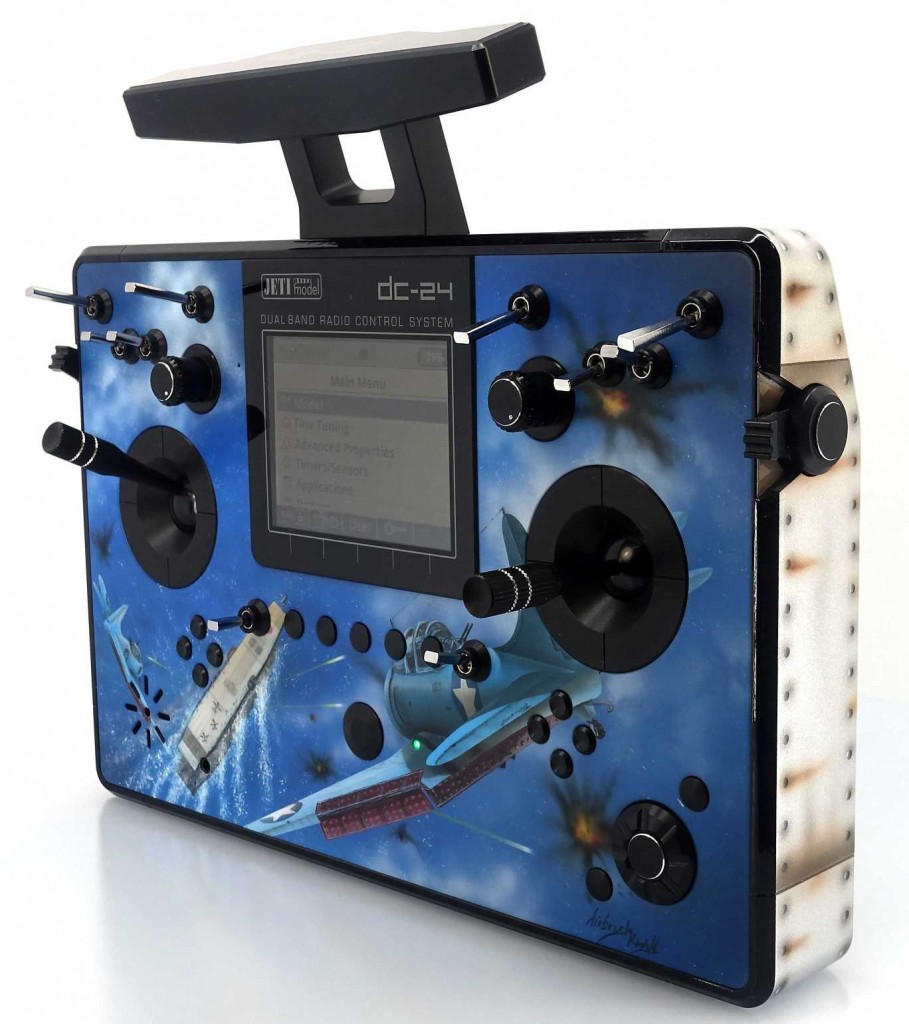

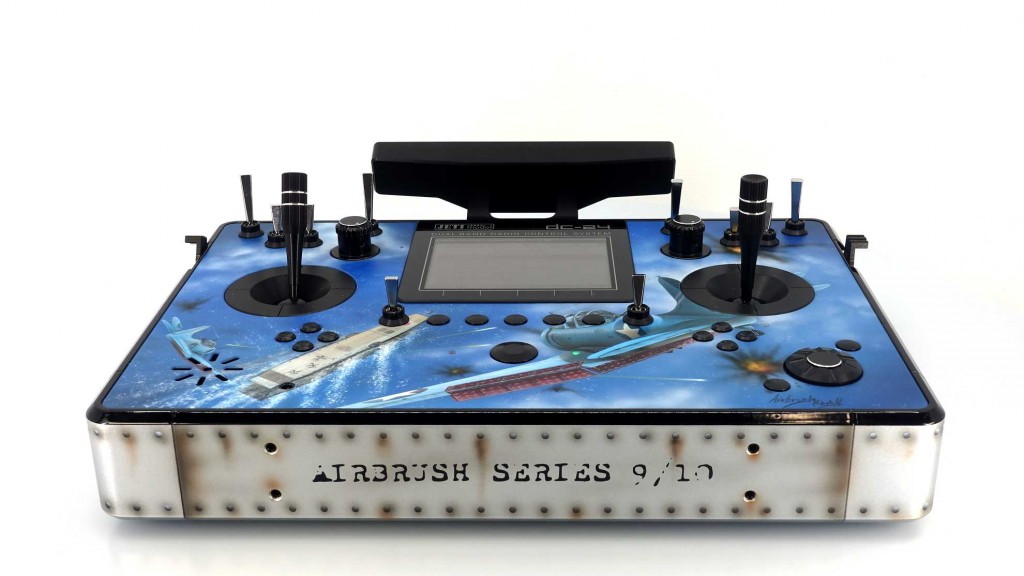

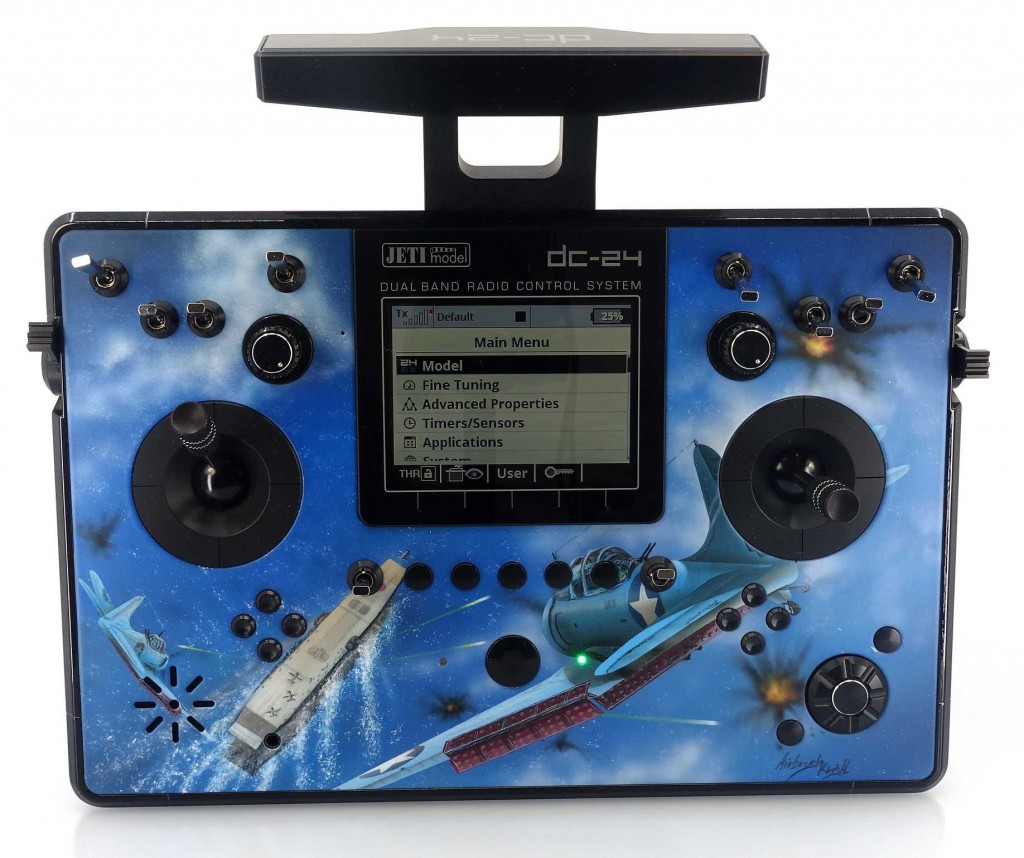

sn 9/10: Limited edition DC-24 Douglas SBD3 Dauntless
Second Lieutenant Richard Halsey Best, 5.6.1942 Midway Atoll
 |
 |
Duplex 2.4GHz – for flight control and reception of telemetric data from the model to the transmitter the DC-24 takes advantage of the Duplex 2.4GHz wireless system, which has been developed by the JETI company as well. TheDuplex 2.4GHz data transfer system is very reliable and has been verified during many years.
Duplex 900MHz - the DC-24 features a backup wireless system for unmatched data transmission safety and reliability. The backup system works in cooperation with main Duplex 2.4GHz system.
Built-in Telemetry – from the beginning the DC-24 transmitter has been developed with regard to lucid displaying properties and exploitation of telemetry for model RC-control.
Integrated microphone with voice recognition capability – using the integrated microphone you can easily prepare your own audio files. Furthermore, you can teach the transmitter to respond to several voice commands.
FM Tuner – allows listening to your favourite fm radio station at the field.
Audio Player – the audio player application supports MP3 and WAV sound formats.

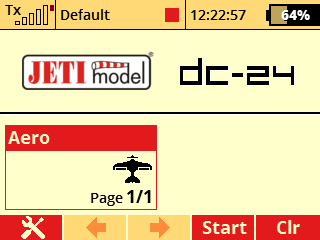

Model & Background Image – the DC-24 allows great personalization of the whole user interface.
Color Schemes – it is possible to choose a color scheme that corresponds to model colors. The DC-24 offers several predefined color schemes.
User Applications – the DC-24 can be easily extended using third-party applications written in Lua programming language (www.lua.org).
See the programming documentation.

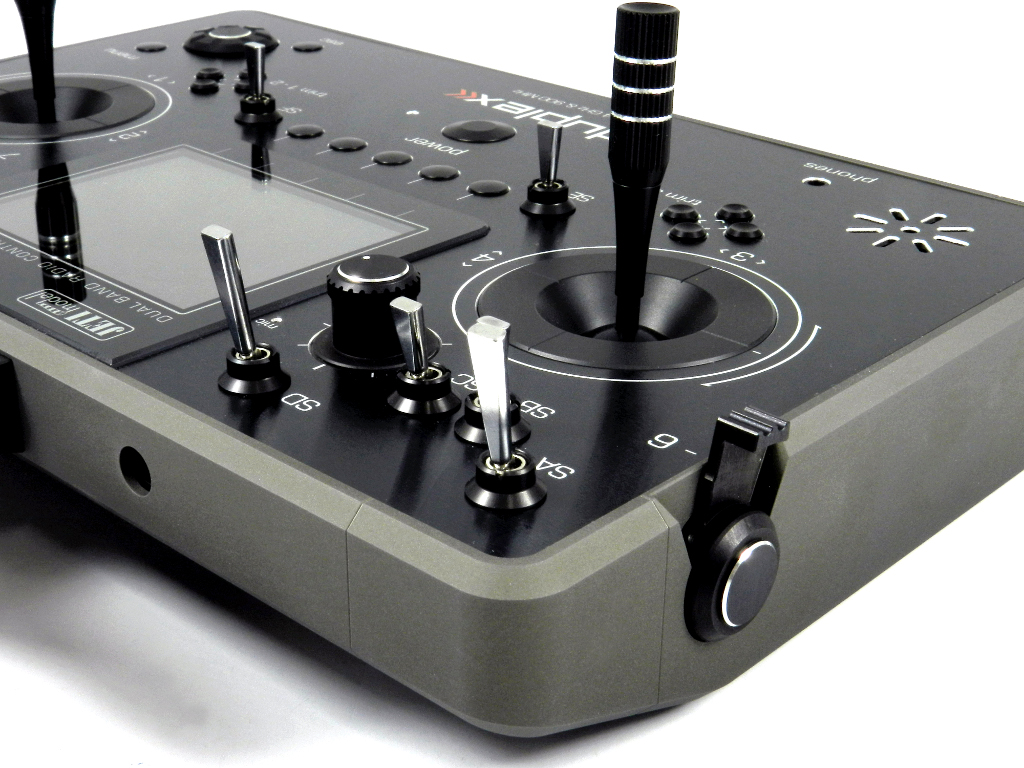

Design of the DC-24 Transmitter – the main goal was maximum user comfort, exclusive appearance and longevity by exploitation of premium quality materials.
Precise Gimbals – made of metal ball raced parts warrant together with contactless scanning an enormous longevity.
Haptic Feedback – the gimbals are equipped with stick shaking vibration motors that can be used for alarm notifications, timers etc.

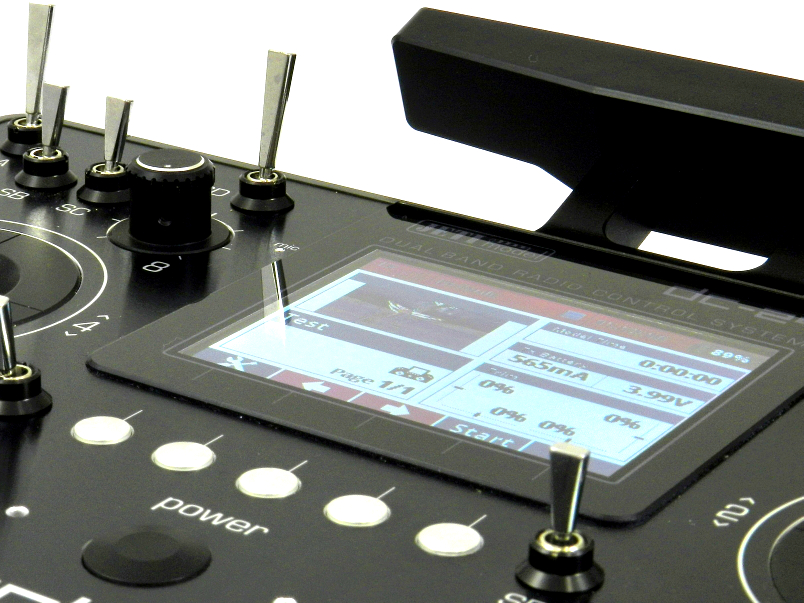

LCD Display – the 3.5“ TFT LCD display of the DC-24 transmitter with a resolution of 320x240 pixels allows perfect legibility under all lighting conditions.
Li-Ion Battery – a reliable energy source with high capacity and long service life.

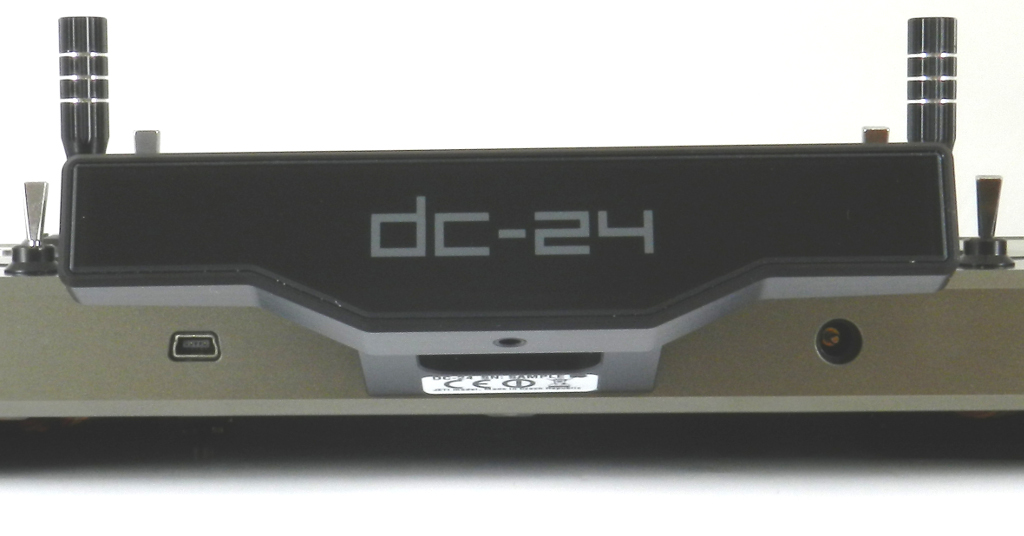

Easy Charging – simply done by connecting the mains adapter to the transmitter. The charging proces is shown in the DC-24 display.
USB Connector – convenient connection to your PC. Fast firmware &
sound upgrades, telemetry data downloads.
Integrated Antenna – the antenna forms an integral part of the transmitter and is protected against mechanical damage.
