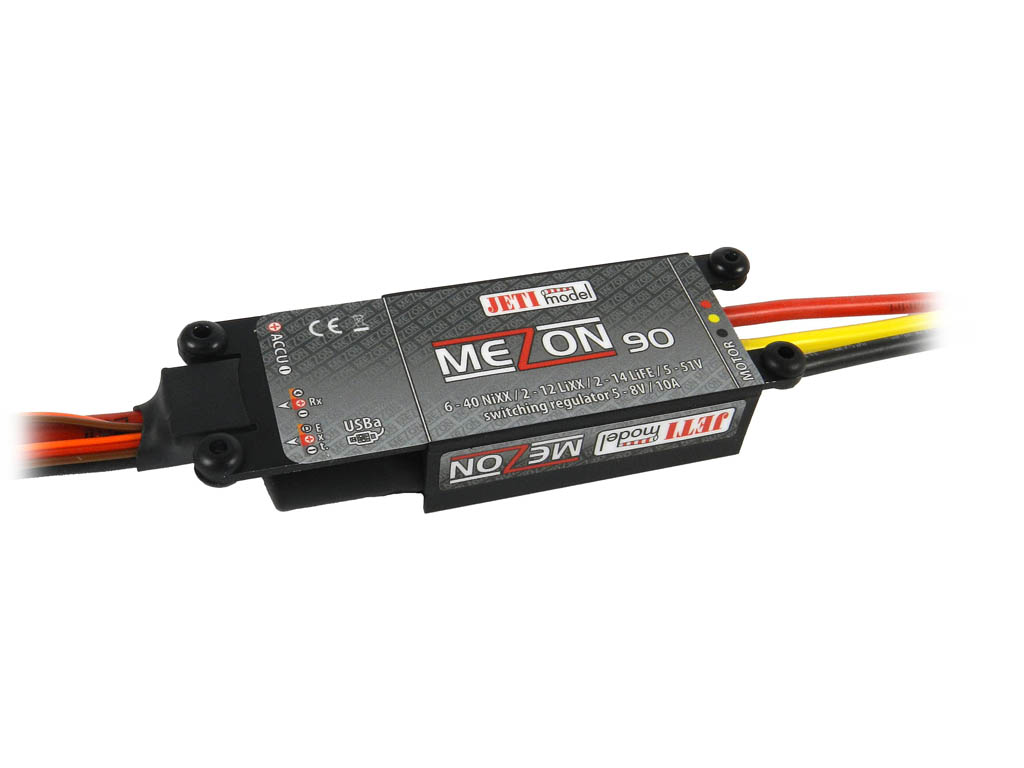

MEZON 90 (RPM)

Art. No.:
Standard: JM-090
RPM: JM-090-RPM
EAN: Standard: 8595245900328
RPM: 8595245900458
MEZON 90 (RPM)
Weight [g] 140
Dimensions [mm] 36 x 20 x 109
Sustained current [A] 90
Telemetry Yes
Operational temperature [°C] -10 ... 130
Supply Voltage [V] 6 ... 51
Batteries LiXX 2 ... 12
Max. Current BEC [A] 8
Voltage BEC [V] 5 ... 8

Files for download

Update - Controllers

Manuals - MEZON

MEZON Manual CZ - Czech User Manual
MEZON Manual DE - German User Manual
MEZON Manual EN - English User Manual

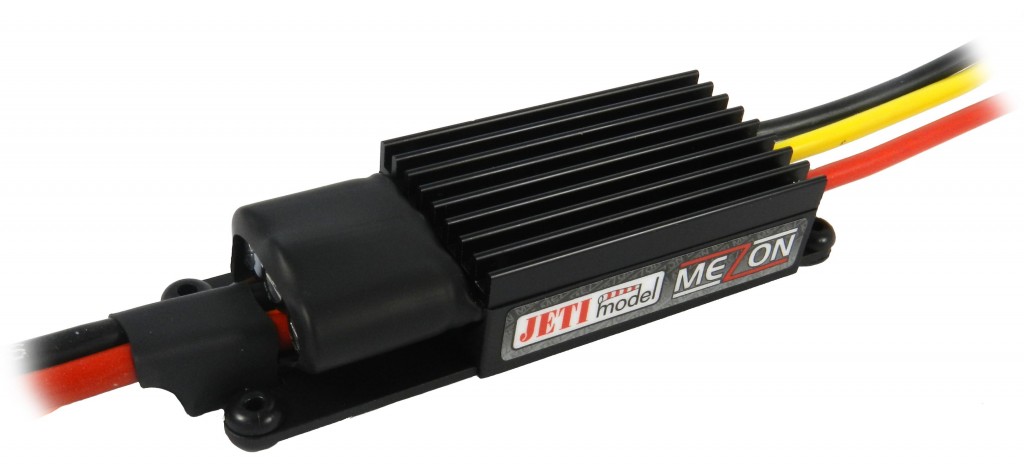

Jeti MEZON ESC´s advanced design and software are capable of unique precise and efficient motor control. Our MEZON ESC´s are able to be fully integrated with the DUPLEX EX systems. With the DUPLEX integration, all data are measured in real time. Mezon ESC´s were designed to be able to measure the exact battery capacity used and let you set up a motor cut off point based not only on cell voltage, but also on overall battery pack capacity.





 Connection of the MEZON controller equipped with BEC
