News
Limited edition of DC/DS-24







We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).

You can find more information and photos on our Facebook profile JETI Model.







Two updates have been released via JETI Studio.







1.    REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).

2.    MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.

Central Box update v1.10
New version of SW v1.10 intended for Central Box 210/220.

-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)

The update can be done by the Jeti Studio.

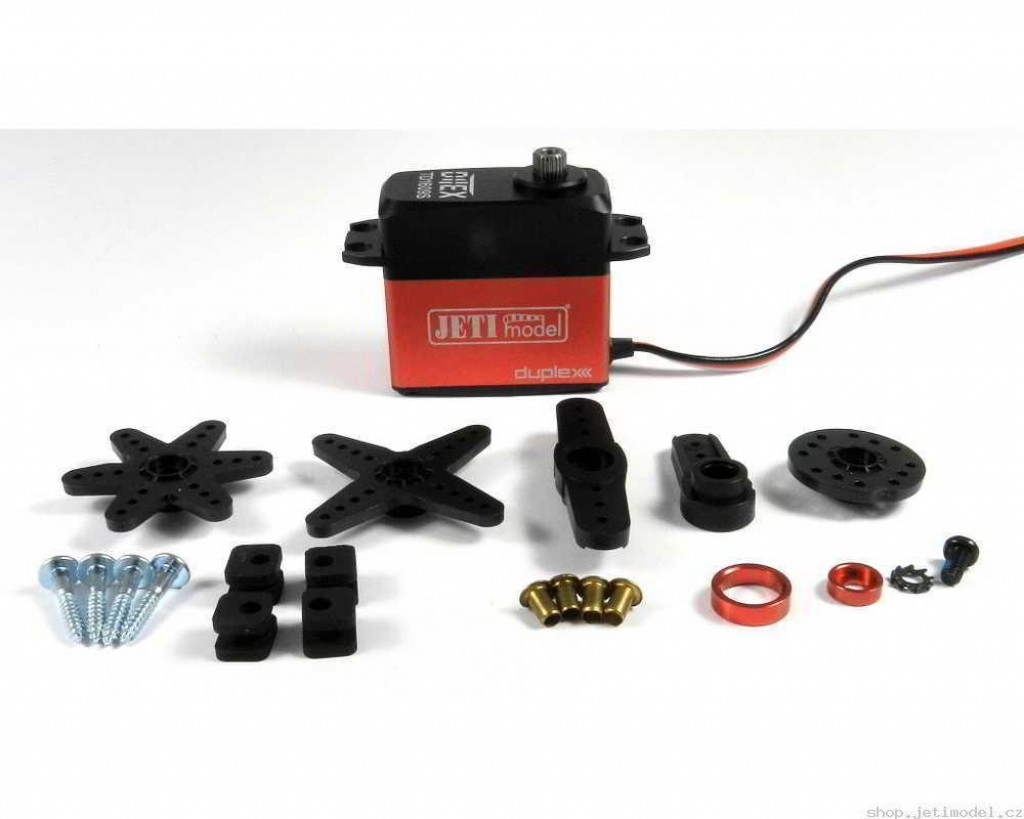

JETI DITEX - Digital Telemetry Servo TD1609S

Art. No.:
DTS-TD1609S
EAN:
JETI DITEX - Digital Telemetry Servo TD1609S
Weight [g] 63
Dimensions [mm] 40 x 20 x 37
Supply Voltage [V] 4.8 ... 10
Torque (6V) [kg/cm] 11.3
Torque (7.4V) [kg/cm] 13.2
Torque (8.2V) [kg/cm] 16.2
Speed (6V) [s] 0.111
Speed (7.4V) [s] 0.052
Speed (8.2V) [s] 0.046
Motor Coreless DC
Gearbox material metal
Output shaft 25-teeth Spline (Futaba compatible)

Files for download

DITEX Manager

DITEX Manager V2.02 (2019) - Installer for MS Windows (58MB)
Manual DITEX Manager [DE] - German User Manual
Manual DITEX Manager [EN] - English User Manual
The DITEX TD1609S servo delivers 162 Ncm (8,4V) at a speed of 0,08sec / 60° and includes all the innovative DITEX technologies. These servos are perfect for everything from 3D helicopters, giant scale aerobats and monster scale models where ultimate reliability, strength and flexible programming are required.

DITEXDITEX servos are powered by premium coreless motors that offer high torque and speed. The servos provide telemetry data and are fully programmable (via USB adapter and DITEX Manager software). They offer users the option of personalized user settings.





Features:

  • Telemetry Data capable
  • Full-Digital Function
  • Multi-Voltage
  • High Precision ” DITEX” digital encoder
  • 16 bit positioning
  • Digital-Signal-Processor with 80Mhz
  • High-End Coreless Motor
  • Full-Metall Gears
  • Only Ballbearing



DITEX: Telemetry Update Process
