We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).
You can find more information and photos on our Facebook profile JETI Model.
1. REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).
2. MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.
-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)
The update can be done by the Jeti Studio.

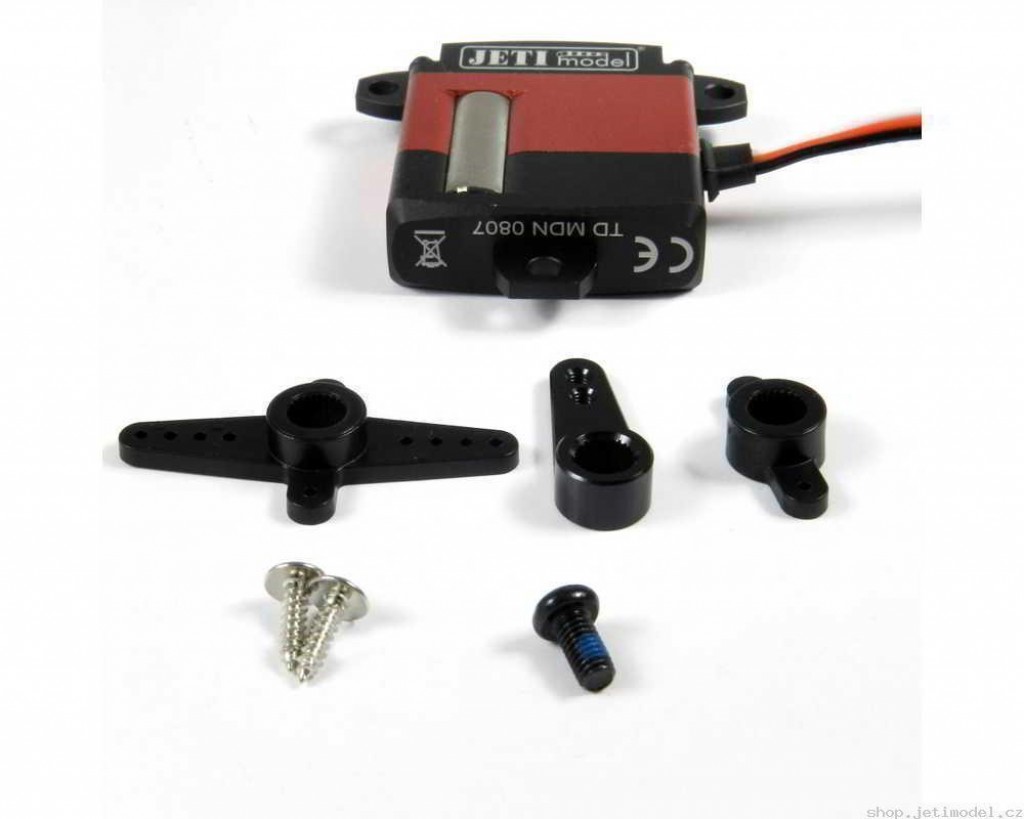

JETI DITEX - Digital Telemetry Servo TD0807W
| Weight [g] | 32 |
| Dimensions [mm] | 35 x 10 x 30 |
| Supply Voltage [V] | 4.8 ... 10 |
| Torque (6V) [kg/cm] | 6.1 |
| Torque (7.4V) [kg/cm] | 6.6 |
| Torque (8.2V) [kg/cm] | 7.2 |
| Speed (6V) [s] | 0.11 |
| Speed (7.4V) [s] | 0.10 |
| Speed (8.2V) [s] | 0.08 |
| Motor | Coreless DC |
| Gearbox material | metal |
| Output shaft | 25-teeth Spline (Futaba compatible) |
Files for download
DITEX Manager
The DITEX TD0807W is truly a special wing servo. Very compact, extremely durable, the TD0807W is the ultimate solution for hotliners, gliders, and jets where a very low-profile servo is required. A true strength of 72 Ncm and a speed of 0,07sec / 60 ° make the DITEX Wing servo one of the quickest, strongest and safest servos for these demanding applications.
DITEX servos are powered by premium coreless motors that offer high torque and speed. The servos provide telemetry data and are fully programmable (via USB adapter and DITEX Manager software). They offer users the option of personalized user settings.
Features:
- Telemetry Data capable
- Full-Digital Function
- Multi-Voltage
- High Precision ” DITEX” digital encoder
- 16 bit positioning
- Digital-Signal-Processor with 80Mhz
- High-End Coreless Motor
- Full-Metall Gears
- Only Ballbearing
