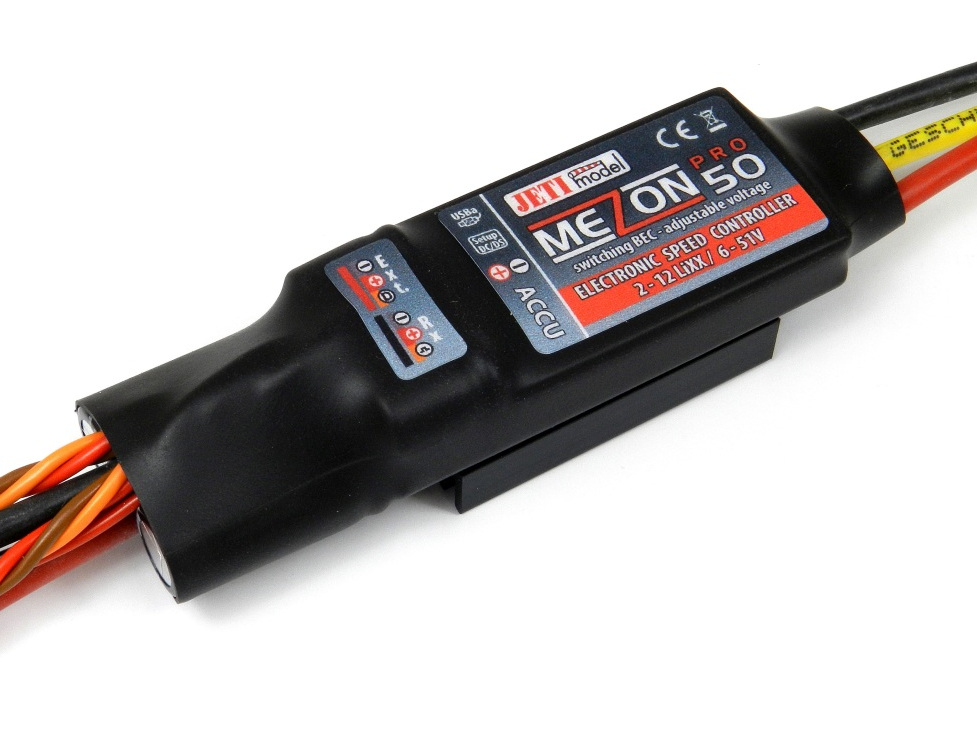

MEZON 50 PRO
| Weight [g] | 90 |
| Dimensions [mm] | 26 x 23 x 83 |
| Sustained current [A] | 50 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 85 |
| Supply Voltage [V] | 6 ... 51 |
| Batteries LiXX | 2 ... 12 |
| Max. Current BEC [A] | 15 |
| Voltage BEC [V] | 5 ... 8.4 |
| Resistance in conducting state [mΩ] | 2 x 1.2 |
| Cable crossection (input/output) [mm²] | 2.5 / 2.5 |
Files for download
Manuals - MEZON PRO
Update - MEZON PRO
Powerful MEZON PRO controllers can be used in a wide variety of applications. They come with strong BEC, full JETI Duplex EX telemetry and programmability via the Device Explorer of JETI Duplex DS/DC transmitters. Forward/reverse motor operation is also possible.
In addition, the throttle channel can optionally be connected to the receiver "EX Bus" port. A separate output pin for a throttle channel is therefore not necessary at the receiver, telemetry and control signals are transferred in both ways via just a single cable.
Properties
- Compact size
- Setting via the Device Explorer of the JETI DC / DS transmitter
- Real-time telemetry via JETI Duplex EX Bus (perfect for JETI DC / DS transmitters)
- Telemetry data: battery voltage, battery current + BEC current, used battery capacity, RPM, PWM, controller temperature
- Telemetry data reset by any transmitter switch
- Powerful BEC, ideal when using JETI Assist or other gyro systems in a model
- BEC with a wide input voltage range and adjustable output voltage
- Activation of the throttle channel from the EX Bus is possible; the receiver then does not have to offer its own slot for the throttle channel.
- Programmable with JETBOX
- Operating modes: Model aircraft, forward / reverse operation
- Proportional brake with a definable braking point at the throttle stick
- F3A brake conveniently adjustable via the Device Explorer
- Heat sink for long engine run times
- High efficiency
- Firmware upgrade possible
- Wide range of adjustable parameters
 |
 |
Recommended connection of the MEZON PRO controller (EX Bus):
Recommended connection of the MEZON PRO controller (standard):
