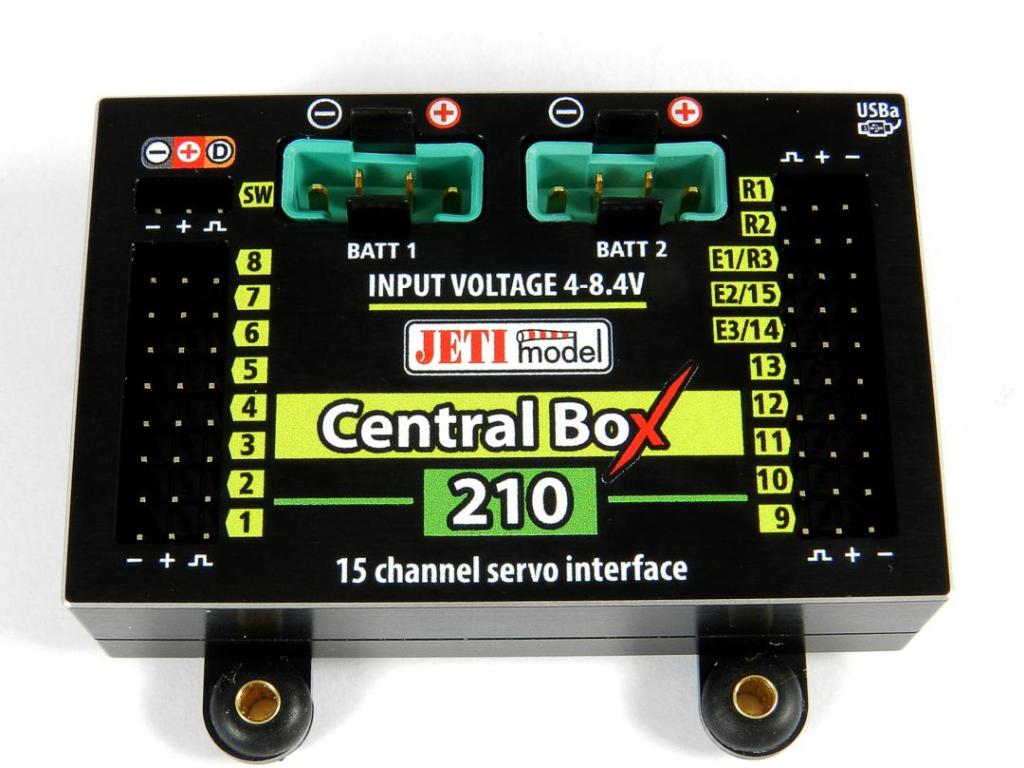

Central Box 210

Art. No.:
EAN:
Central Box 210
Weight [g] 65
Dimensions [mm] 66x42x18
Sustained current [A] 20
Number of channels 15
Telemetry Yes
Operational temperature [°C] -20 ... 85
Compatible protocols EX Bus, PPM, S.Bus, UDI
Supply Voltage [V] 4 ... 8.4
Satellite receiver support Yes
Batteries LiXX 2
Idle current [µA] 240
Number of battery inputs 2
Voltage stabilization No

Files for download

Manuals - Central Box 210/220

Central Box 210/220 [DE] - German User Manual
Central Box 210/220 [EN] - English User Manual
Devices - Configuration file for DC/DS transmitters (unzip to Devices folder)

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box 210 offers maximal unreduced power for each servo (servo outputs do not have overload protection). The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 210. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.

Attributes

  • Central Box 210 has unreduced power for each servo (without fuses)
  • Support of DITEX telemetry servos
  • Possibility to connect up to 3 receivers with serial interface
  • Built-in Expander function for up to 3 sensors
  • Input for magnetic switch or RC switch
  • 2x MPX battery input connectors
  • 100Hz mode of servo outputs (10ms period)
  • Supports EX telemetry (voltage, current, capacity, temperature measurement, …)



Available variants:



J-CB-210 Central BOX 210 EAN 8595245914424
J-CB-210-RS Central BOX 210 + 2x Rsat2 EAN 8595245914431
J-CB-210-RS-RCSW Central BOX 210 with 2x Rsat2 and RCSW EAN 8595245914448





Recommended connection of standard (as well as high voltage) servos:




img img
img img
