We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).
You can find more information and photos on our Facebook profile JETI Model.
1. REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).
2. MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.
-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)
The update can be done by the Jeti Studio.

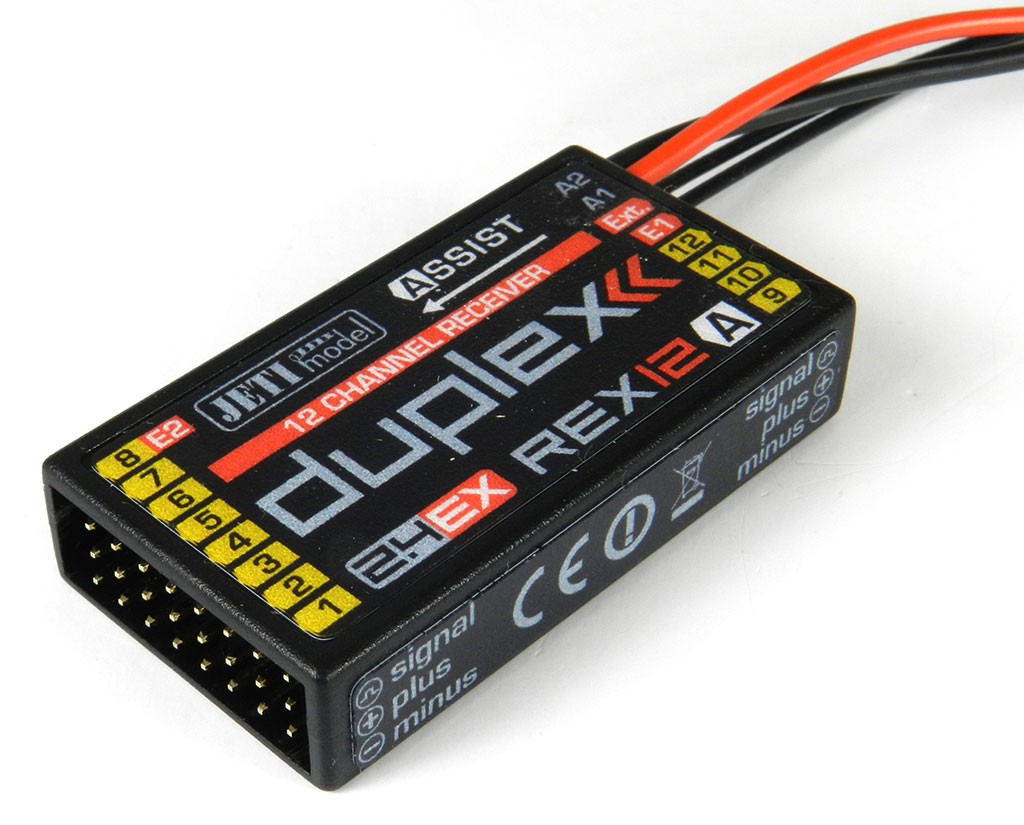

Duplex REX12A EPC - Assist
| Weight [g] | 24 |
| Dimensions [mm] | 51 x 28 x 11 |
| Number of channels | 12 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 85 |
| Compatible protocols | DUPLEX 2.4GHz EX, EX Bus |
| Antenna Length [mm] | 2 x 400 |
| Supply Voltage [V] | 3,5 - 8,4 |
| Average Current [mA] | 75 |
| Satellite receiver support | Yes |
| Output Power [dBm] | 15 |
| Receiver Sensitivity [dBm] | -106 |
| Assist stabilization | Yes |
Files for download
Manuals - REX A
Update - Receivers
12 channel full-range receiver with integrated Assist stabilization, compatible with JETI EX & EX Bus protocols. Supports telemetry functions and contains a separate battery power connector (MPX).
The REX A receivers enhance the REX series of receivers and extend it with the intelligent flight stabilization feature, which is designed for airplane models and multicopters. This stabilization works in all three axes of the model and facilitates flying in windy or otherwise challenging conditions. Aerobatic maneuvers will be more accurate and smoother. With the help of several flight modes, which are also suitable for beginner pilots, flying practice will be really easy.
Properties
- Up to 16 stabilized airplane channels.
- Support for different multicopter types – from tricopters to octocopters.
- Up to 3 adjustable flight modes, options for stabilizing the horizon and altitude.
- In-flight gain tuning using free channels.
- Using the latest 3-axis gyroscope, 3-axis accelerometer and barometric altimeter.
- Support for LED strip consisting of WS2812 chips.
- Support for external camera gimbal driven by servos.
- Intelligent fail-safe.
- Vibration analysis.
- Full set-up options with DC/DS transmitters or via PC.
- Available telemetry: Receiver voltage, signal quality, G-force, attitude orientation.
- Support of telemetry and up to 3 sensors connected directly.
Table of possible functions on the individual receiver pins
Output Types:
- Y1 - Y12: servo output, digital output, digital input, motor 1-8 (multicopters), camera roll, pitch, and yaw.
- E1, E2: JETIBOX/EX sensor, PPM output, PPM input, EX Bus output, UDI output
- Ext: JETIBOX/EX sensor
Configuration
Airplane Wizard
 |
 |
 |
Multicopter Wizard
 |
 |
 |
Additional functions
|
Vibration analysis |
Several flight modes available |
LED Strip support |
