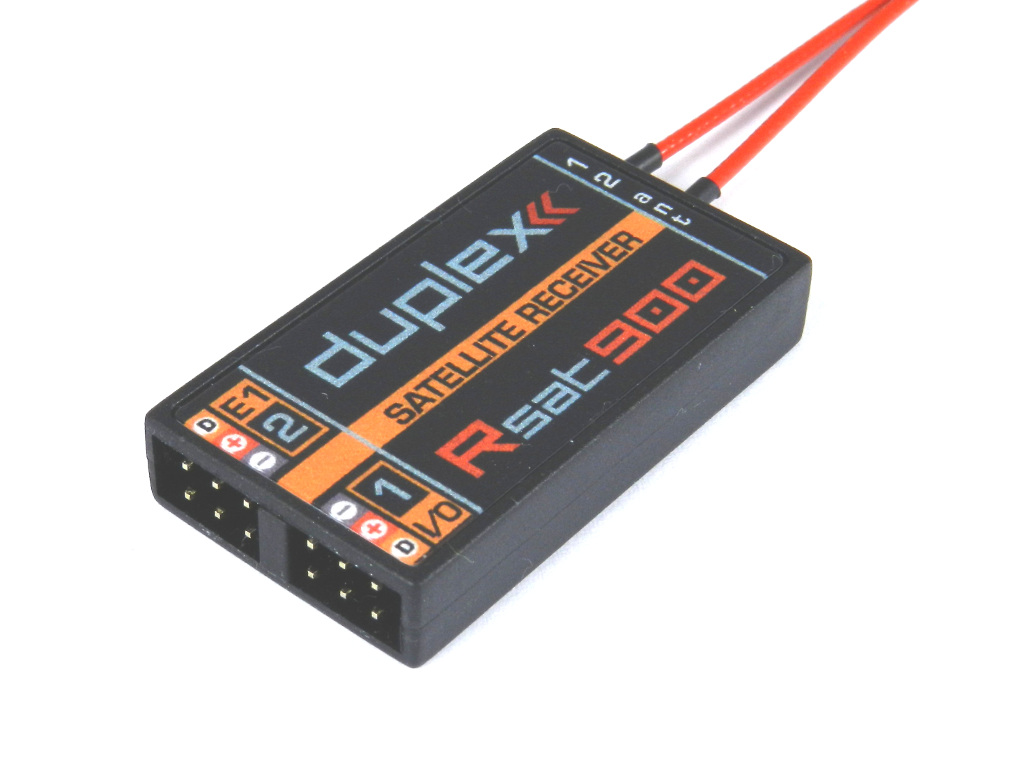

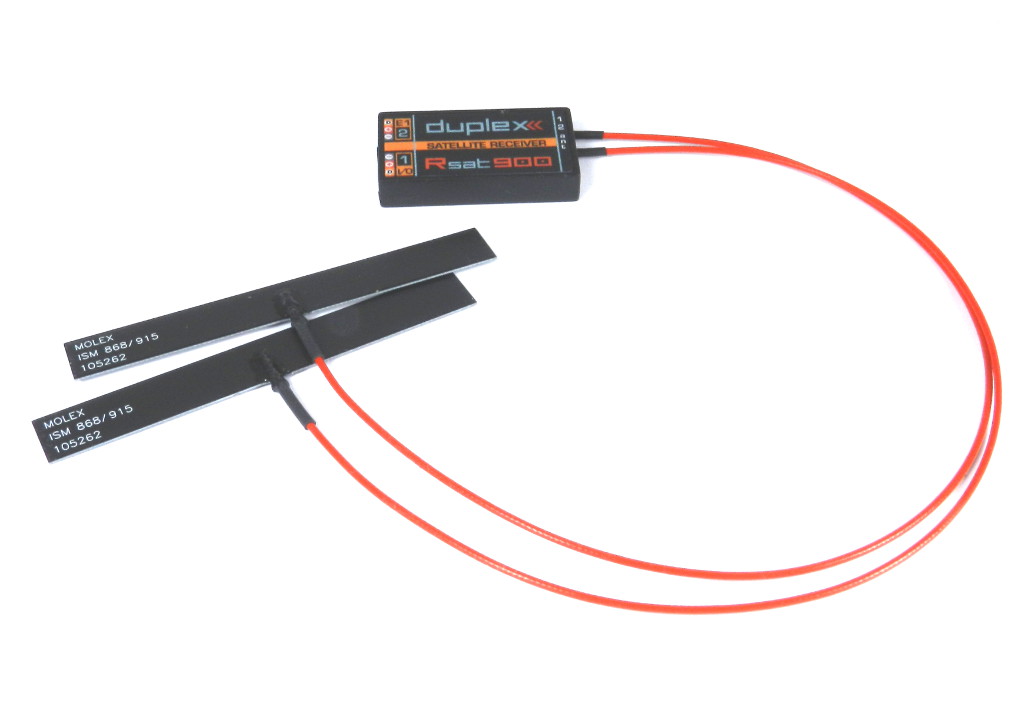

Duplex RSAT 900
| Weight [g] | 11 |
| Dimensions [mm] | 40 x 22 x 7 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 85 |
| Compatible protocols | DUPLEX 900MHz EX, EX Bus |

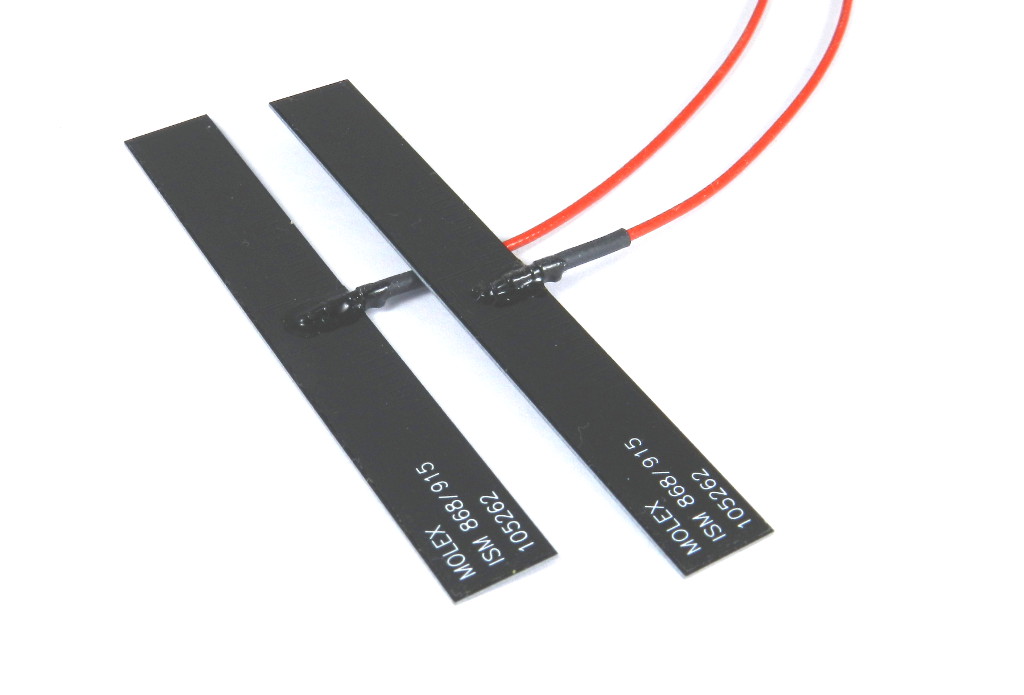

| Antenna Length [mm] | 2 x 280 |
| Supply Voltage [V] | 3,5 - 8,4 |
| Average Current [mA] | 75 |
| Satellite receiver support | Yes |
| Output Power [dBm] | 14 |
| Receiver Sensitivity [dBm] | -110 |
| Assist stabilization | No |
Files for download
Manuals - Duplex REX
Update - Receivers
Full-range backup receiver compatible with JETI EX 900 & EX Bus protocols. Supports telemetry functions.
Additional features:
- PPM input
- PPM output
- Integrated expander for EX & EX Bus devices
- UDI digital output
JETI RSAT 900 receivers are designated for use with the DC/DS-24 transmitters in the 900MHz frequency band.
EU: 863-870MHz
US: 902-915MHz
|
 |
 |
 |
