MRPM-AC EX

Art. No.:
JEX-MRPM-AC
EAN: 8595245909727
MRPM-AC EX
Weight [g] 6
Dimensions [mm] 19 x 14 x 4
Operational temperature [°C] -10 ... 85
Supply Voltage [V] 3,5 - 8,4
Average Current [mA] 10

Files for download

Update - Sensors

MRPM HALL V1.02 - MRPM HALL Update (11/2018)
MULI6s Module Update V1.04 (4/2018) - MULI6s M Firmware Update
MUI EX Update V2.03 (8/2016) - MUI Update - added energy calculation (wattminutes for F5B)
Mx Update EX (8/2013) - Firmware Update for Sensors

Manuals - MRPM-AC EX

MRPM EX Manual DE - German User Manual
MRPM-AC EX Manual CZ - Czech User Manual
MRPM-AC EX Manual EN - English User Manual
Propeller Efficiency Table - List of common propeller types together with their n100W coefficients.

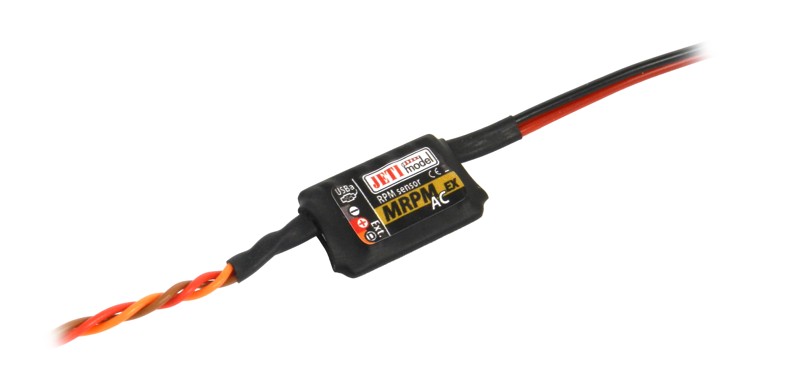

The sensor MRPM EX-AC is used exclusively for measuring the speed of brushless DC motors (BLDC). It is connected to any two motor phases and it calculates the current speed from the electrical course at the phases. With the help of the sensor MRPM-EX AC, current speeds and the past course of the propeller performance (minimum, maximum) can be monitored.
The sensor can be adjusted to set the timeout parameter which will be later announced to the user. Because the sensor is connected to the motor power system, the user must adjust the number of motor poles and the gear ratio of the transmission system to ensure proper operation. The information from the sensor are transmitted to the user via the Duplex system.
