Limited edition of DC/DS-24







We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).

You can find more information and photos on our Facebook profile JETI Model.







Two updates have been released via JETI Studio.







1.    REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).

2.    MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.

Central Box update v1.10
New version of SW v1.10 intended for Central Box 210/220.

-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)

The update can be done by the Jeti Studio.

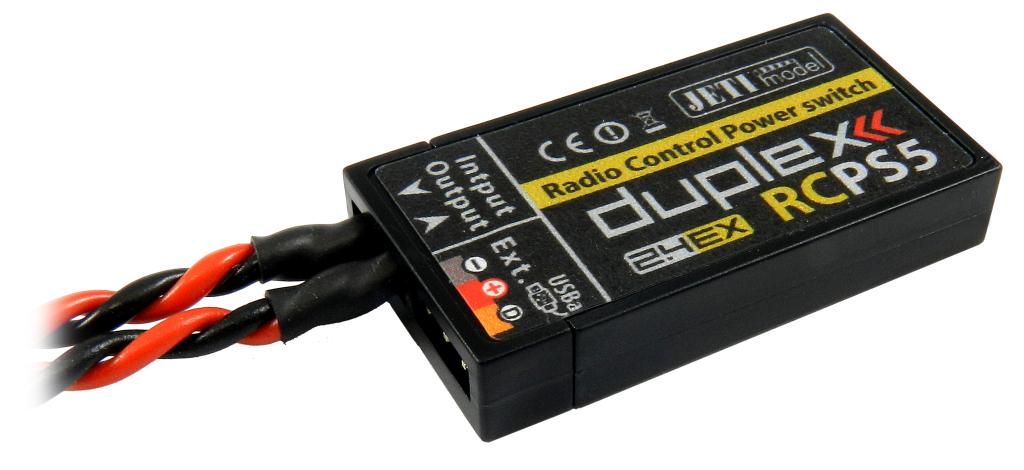

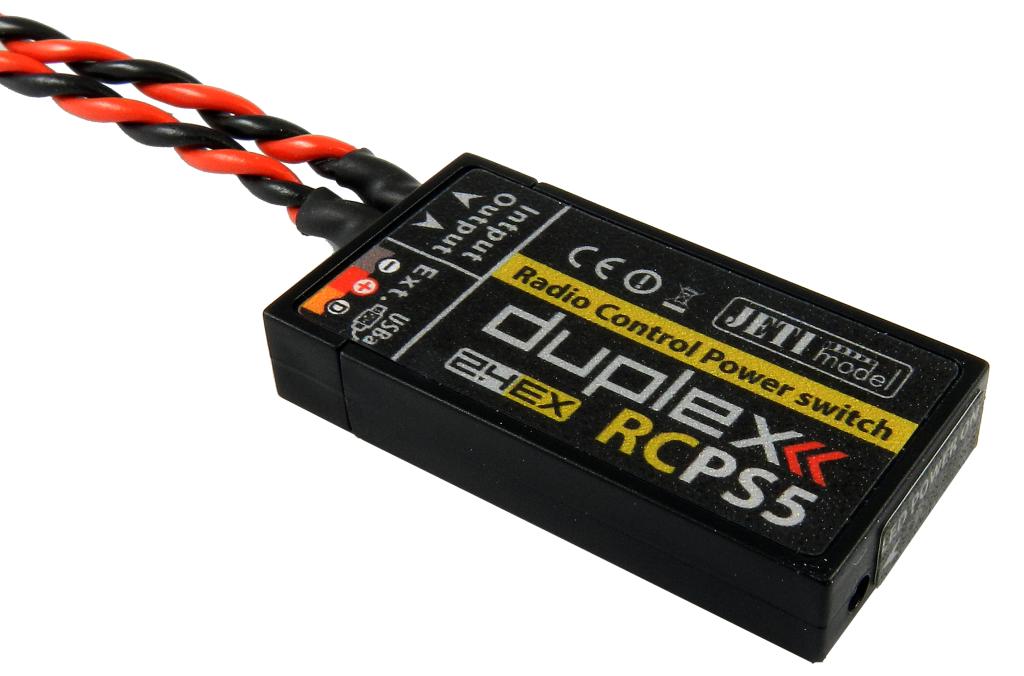

RC Power Switch 5A

Art. No.:
JDEX-RCPS5
EAN: 8595245911317
RC Power Switch 5A
Weight [g] 5 *)
Dimensions [mm] 38 x 7 x 20
Sustained current [A] 5
Operational temperature [°C] -20 ... 85
Average Current [mA] 20
Recommended input voltage [V] 3,3 ... 24
Idle current [µA] 80

Files for download

Manuals - RC Switch

RC Switch Manual [CZ, DE, EN, FR] - User manual for the RC Switch product line

RCPS5 - RC Power Switch 5A is a wireless switch equipped with a power circuitry that allows direct connection to receiver battery. RC Power Switch can be easily controlled using DC/DS transmitters and it can be simply used as a replacement of a standard mechanical switch.



Switching is indicated by a red LED that is visible through the opening on the side of the RC Switch.







Application example

Application connection with RC Power Switch














*) Weight is depicted without cables.
