We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).
You can find more information and photos on our Facebook profile JETI Model.
1. REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).
2. MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.
-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)
The update can be done by the Jeti Studio.

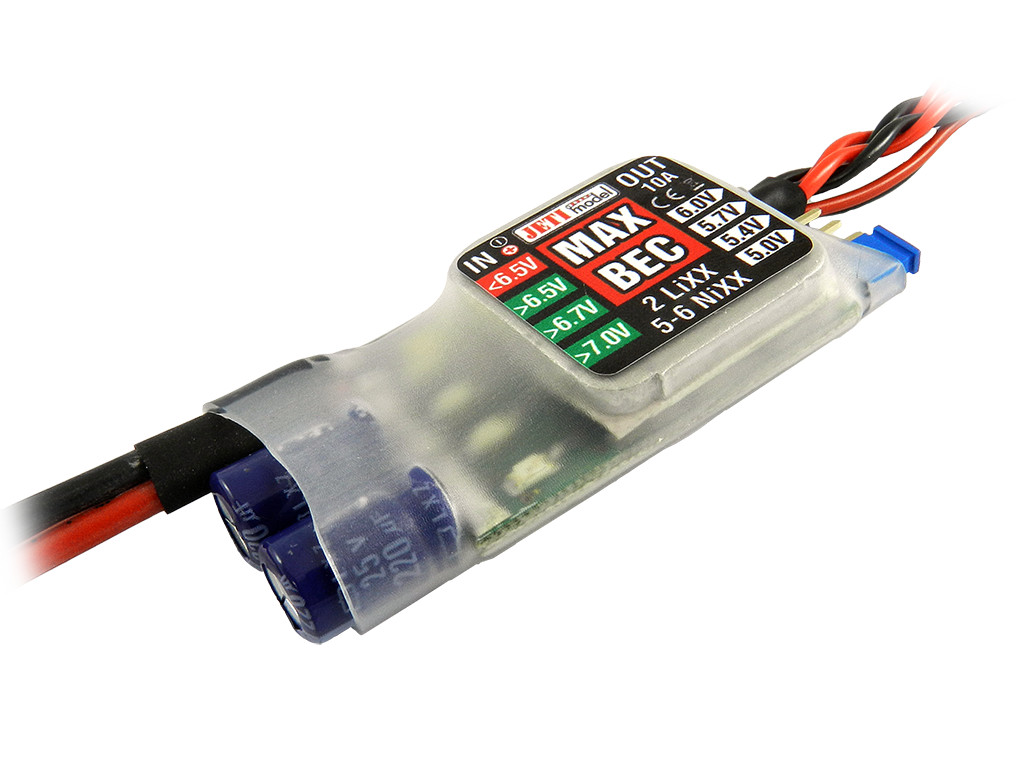

MAX BEC
| Weight [g] | 28 |
| Dimensions [mm] | 50 x 25 x 10 |
| Sustained current [A] | 5 |
| Peak current (max 30s) [A] | 12 |
| Telemetry | No |
| Operational temperature [°C] | -10 ... 130 |
| Recommended input voltage [V] | 5,5 ... 8,4 |
| Output voltage [V] | 5,0 / 5,4 / 5,7 / 6,0 |
| Idle current [µA] | 17 |
| Max. power loss [W] | 7 |
| Number of battery inputs | 1 |
| Input voltage max. [V] | 16 |
Files for download
Manuals - MAX BEC
Required output voltage (5.0V, 5.4V, 5.7V, 6.0V) is selected by a jumper plug.
MAX BEC can be supplied either by NiXX or LiXX cells, recommended are 2 LiXX cells or 5-6 NiXX cells. Input voltage is indicated by four LED´s. If the input voltage is above 7.0V, all three green LED´s are ON. While the cells are gradually discharging, particular LED´s go OFF depending on input voltage (lower then 7V, 6.7V, 6.45V). If the input voltage is under 6.5V, the red LED goes ON indicating that cells are discharged (if using 2S LiXX then it means that voltage of particular cells is under 3.25V).
Supply cells must be connected into input side with two 0.5 mm2 cables. There is also parallel-connected 3link with JR connector which is intended for cells charging, without a need for disconnection of power connectors. Maximum charging current is 0,5A (limited by connector).
Output voltage is extracted from output side with 2 links. It is recommended to connect both 2-links, it results in higher reliability and lower current loading on connectors. The connectors may be plugged in any channel of the receiver.
On the output side, there is a switch extracted, which activates the regulator. The switch is connected as “safe”; it means that mechanical damage of joints or wires has no impact on BEC function.
