MAX BEC 2

Art. No.:
J-MB2
EAN: 8595245909659
MAX BEC 2
Weight [g] 85
Dimensions [mm] 100 x 29 x 16
Sustained current [A] 12
Peak current (max 30s) [A] 20
Telemetry No
Operational temperature [°C] -10 ... 130
Recommended input voltage [V] 5,5 ... 8,4
Output voltage [V] 5,0 / 5,4 / 5,7 / 6,0
Idle current [µA] 170
Max. power loss [W] 20
Number of battery inputs 2
Input voltage max. [V] 16

Files for download

Manuals - MAX BEC 2

MAX BEC 2 Manual CZ - Czech User Manual
MAX BEC 2 Manual DE - German User Manual
MAX BEC 2 Manual EN - English User Manual

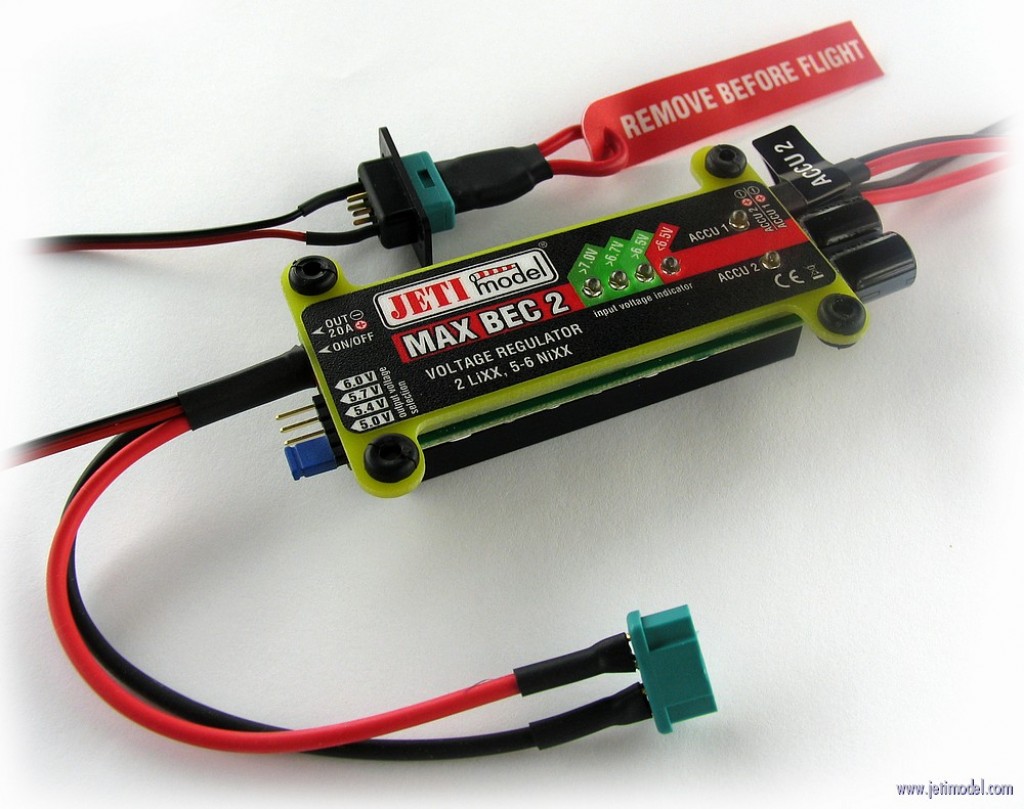

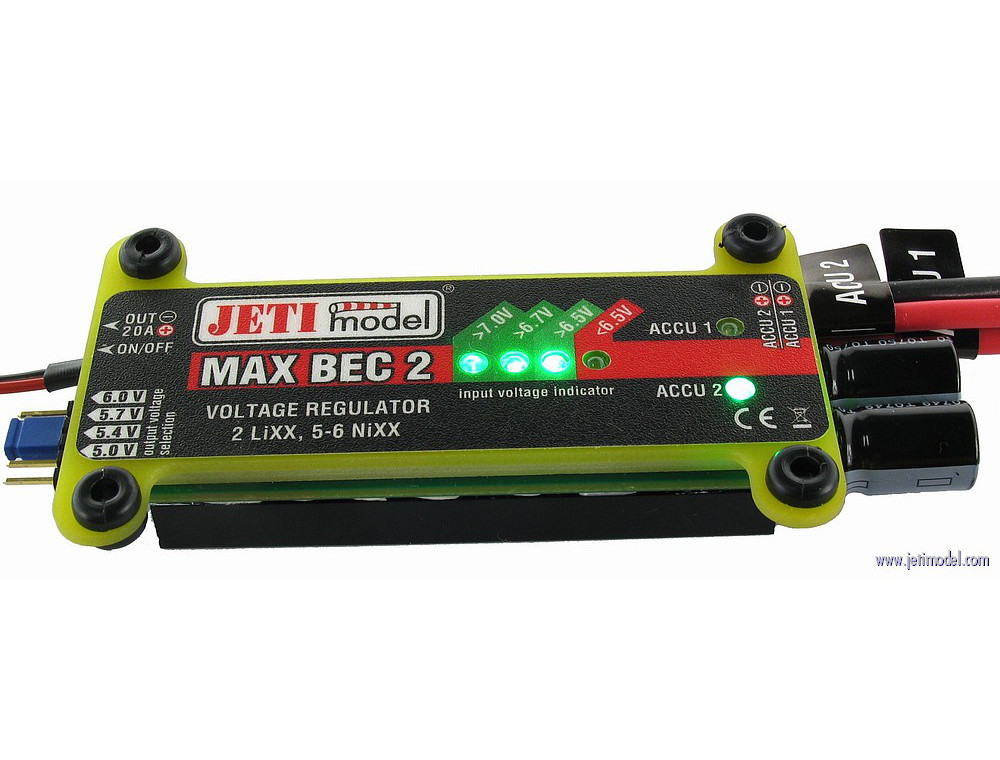

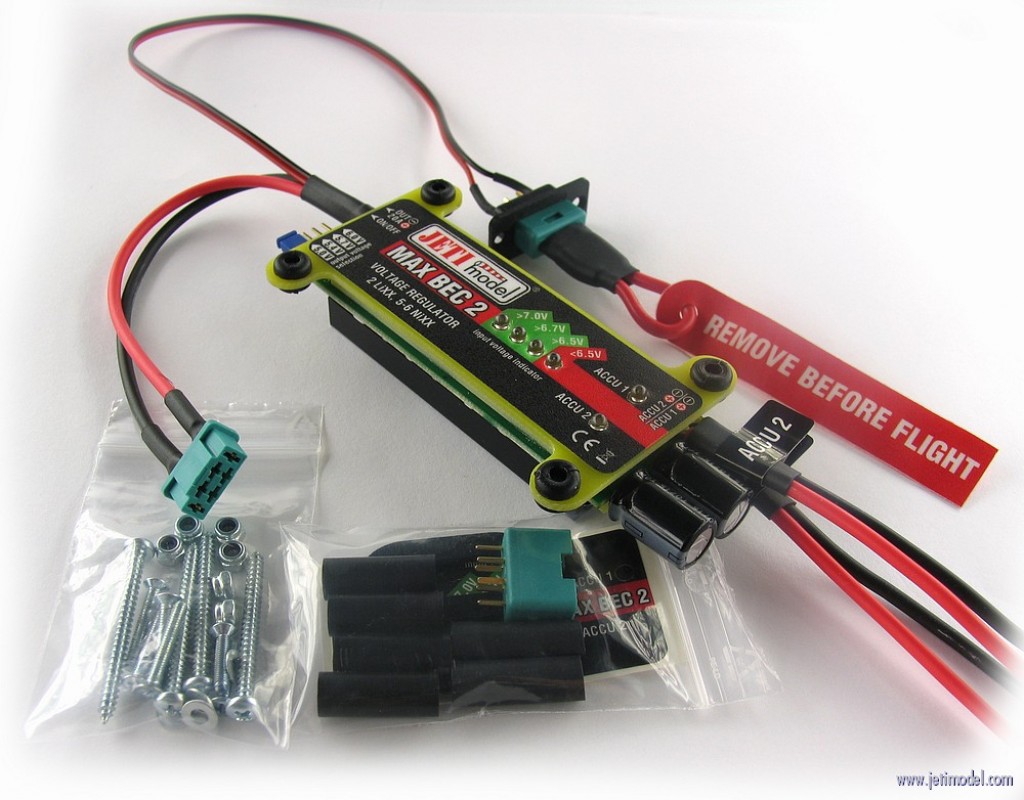

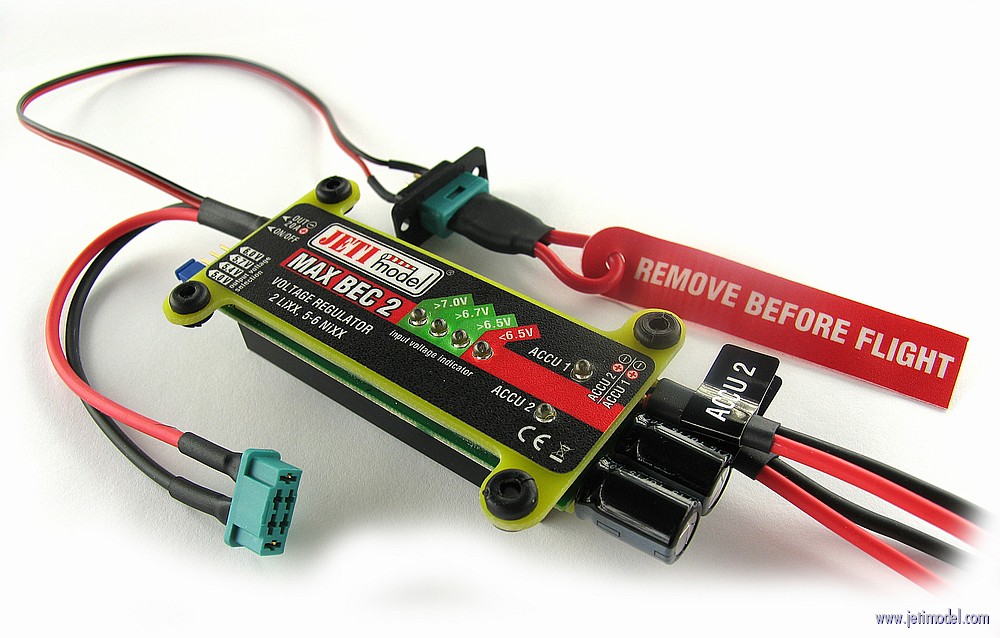

MAX BEC 2 is designed to power the receiver and servos in the model. MAX BEC 2 is a linear voltage stabilizer with an adjustable output voltage. The output voltage is set using a jumper and in one of four positions: 5.0V, 5.4V, 5.7V or 6.0V. MAX BEC 2 can be powered using NiXX and Li–XX cells. MAX BEC also gives an indication of used capacity of the battery with four LED´s.
An integral part of the MAX BEC 2 is an electronic switch that uses a highly efficient type of MOSFET transistor. The main benefits of the MAX BEC 2 include a high voltage rating (to 12 cells NiXX) and low current in the off state (170 μA). The analog voltage stabilization does not contribute to radio interference.
