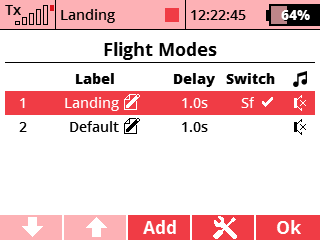

Create a flight mode Landing which you will activate by some switch you have chosen and set an adequate delay. After that please activate this new mode.
-

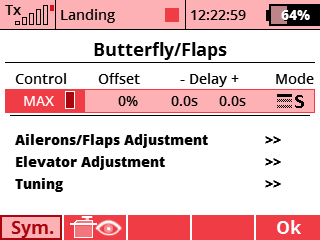

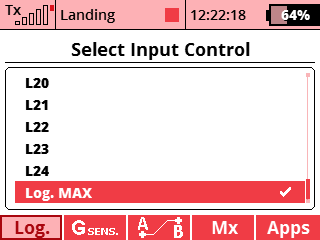

Choose Fine Tuning – Butterfly menu, set „S“ mode (separate for every single flight mode) and use a „Log. MAX“ function for controlling (this one is specific because it is active for all the time). The control for Butterfly function will be affiliated only in your Landing mode. You will see an empty space in other flight modes.
-

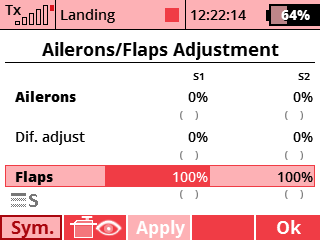

Open Ailerons/Flaps Adjustment and edit „Flaps“ parameter in order to create sufficient deflection of the flaps. Adjust other parameters according to a recommendation of your model producer or on the base of your own experience.
Menu
News
Limited edition of DC/DS-24
We would like to introduce you a special limited edition of ten DC/DS-24 transmitters, which was created for the 75th anniversary of the end of World War II. Unfortunately, the release of this series last year was significantly affected by a global pandemic, which also affected our plans. The limited edition is intended for end customers, collectors and fans of JETI and is created in the spirit of flying legends of World War II. Each transmitter has original design, which was artistically painted directly on the transmitter (Airbrush).
You can find more information and photos on our Facebook profile JETI Model.
Two updates have been released via JETI Studio.
1. REX Assist v1.19 (03/2021)
Airplane pitch with Assist enabled is no longer affected by acceleration (Horizon mode).
2. MVario2 FAI F5J v2.05 (03/2021)
Supports new sensor revision.
Central Box update v1.10
New version of SW v1.10 intended for Central Box 210/220.
-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)
The update can be done by the Jeti Studio.
-Time interval of the RX alarm was modified to 2s.
-Extension the compatibility for Futaba R7008SB (S.BUS)
The update can be done by the Jeti Studio.
How to activate an automatic flaps deployment according to flight mode.
We can set up braking flaps in menu Fine Tuning – Butterfly. It is possible to operate them manually either by proportional control or by 2-position switch. Another option, an automatic activation in flight mode, we are describing below.
